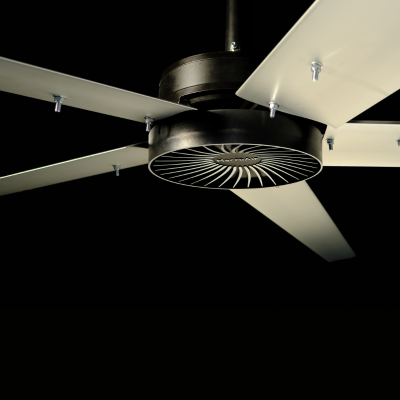

AVD5

The captivating five-blade AVD5 is a perfect composition of purposeful design, superior performance, and cost efficiency. A commanding revelation in air movement.

Get a Quote

AVD5 Features and Benefits

Direct Drive Motor

  • Quiet operation
  • Light weight
  • Low maintenance
  • Unparalleled energy efficiency
  • Low operating costs - an average of $0.20 per hr to run*

 *Rates based on the national average rate of $0.15 per kilowatt hour as of May 2024.

5 Clear Coat anodized airfoil blades (8-24 ft)

  • Outside use
  • Rust resistant
  • Corrosion resistant
  • Effective and efficient air movement

Variable Frequency Drive

  • Flexibility in controllers
  • High reliability
  • Variable Speed
  • Forward direction operation, to help cool your space
  • Reverse direction operation, to help warm your space
  • Protection of the motor

Digital wall controller with fault code access

  • Simple operation
  • Easy ground-level troubleshooting and diagnostics
  • IP40

AirLynk BMS Integration (optional upgrade)

  • Integrates into your Building Management System (BMS)
  • Controls many fans at one time
  • Automated
  • Works with your HVAC

Safety components including safety cable, universal mount with guy wires, and blade retainer links

  • Adaptable and safe for any application
  • Safe fan operation

15 yr Mechanical/10 yr Electrical Warranty

  • Buy with confidence
  • Peace of mind
  • Team of knowledgeable customer service reps to assist you with any questions or needs

Overall Fan Benefits

  • Saves on energy costs
  • Keeps people feeling 8-15° cooler
  • Replaces 13-40 small fans depending on the diameter of the fan
  • Frees up workspace
  • Improves building ventilation
  • Decreases humidity levels
  • Destratifies the air

  • *Avg. Price Per Hr

    $0.20

  • Max Coverage

    20,350 Sq Ft

  • Diameter Range

    8-24 Ft

  • Years of Warranty

    15 Mech / 10 Elec

1 4

*Based on average of all fan diameters and national average rate of $0.15 per kilowatt hour as of May, 2024.

  • Standard Features:

    -1.0 HP (equivalent) Direct Drive motor, rated for indoor/outdoor use (motor unit only)

    - Clearcoat anodized airfoil blades

    - Industry-leading onboard electronics for unmatched reliability

    - Forward, reverse, variable speed

    - Integrated VFD/mount enclosure

    - Safety components: safety cable, universal mount with guy wires, blade retainer links

  • Includes:

    - 1.0 HP (equivalent) Direct Drive motor unit

    - 8, 10, 12, 14, 16, 18, 20, or 24 ft blade set (5 blades total)

    - Universal mount (for mounting the fan to ceiling structure/standard I-beam)

    - Installation hardware (all hardware needed for hanging fan/standard I-beam hardware kit)

    - Drop tube (3 ft. drop standard)

    - Industrial grade VFD (Variable Frequency Drive)

    - Digital wall controller with fault code access

    - 100 ft of CAT5 cable (connecting wall control to the VFD)

    - 50 ft of motor cable (connecting fan motor to VFD)

    - Installation/Operation manual

  • Specifications:

    - Industrial/Commercial HVLS ceiling fan with 5 anodized aluminum blades (airfoils)

    - 1.0 HP (equivalent) Direct Drive motor

    - 138.8-177.8 lb hanging weight

    - Input voltage: 208 – 240V single phase, 50/60 Hz, 208 – 240V three phase, 50/60 Hz, and 480V three phase, 50-60 Hz.

    - Most suitable for ceiling heights greater than 20 ft.

    - Rated for outdoor use. This applies to the fan unit only and does not include controller, control panel, and accessories.

    - High voltage electric cable - NOT INCLUDED (needed for connecting VFD to building power/breaker panel)

    - Professional installation recommended by a licensed electrician

1 3
