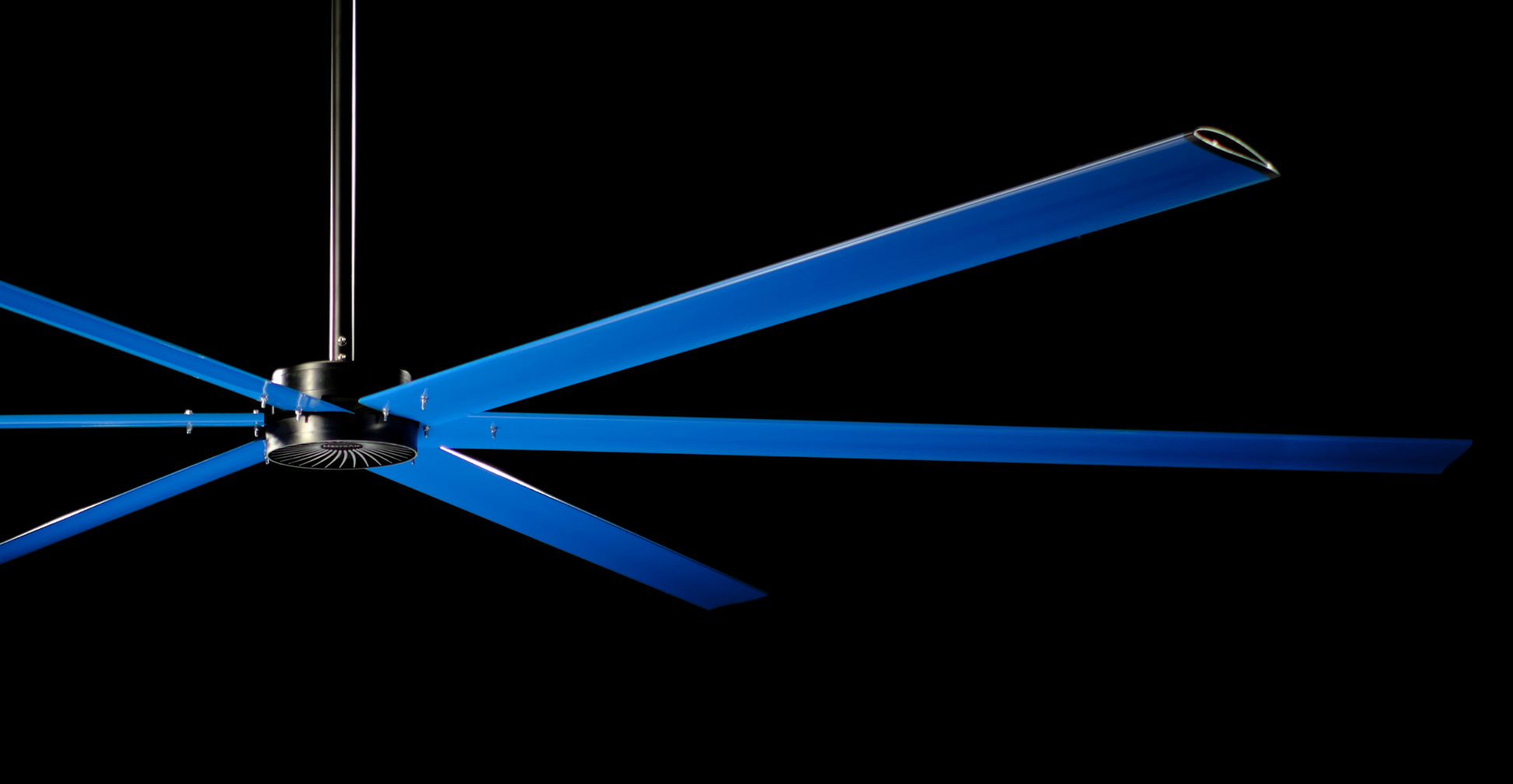

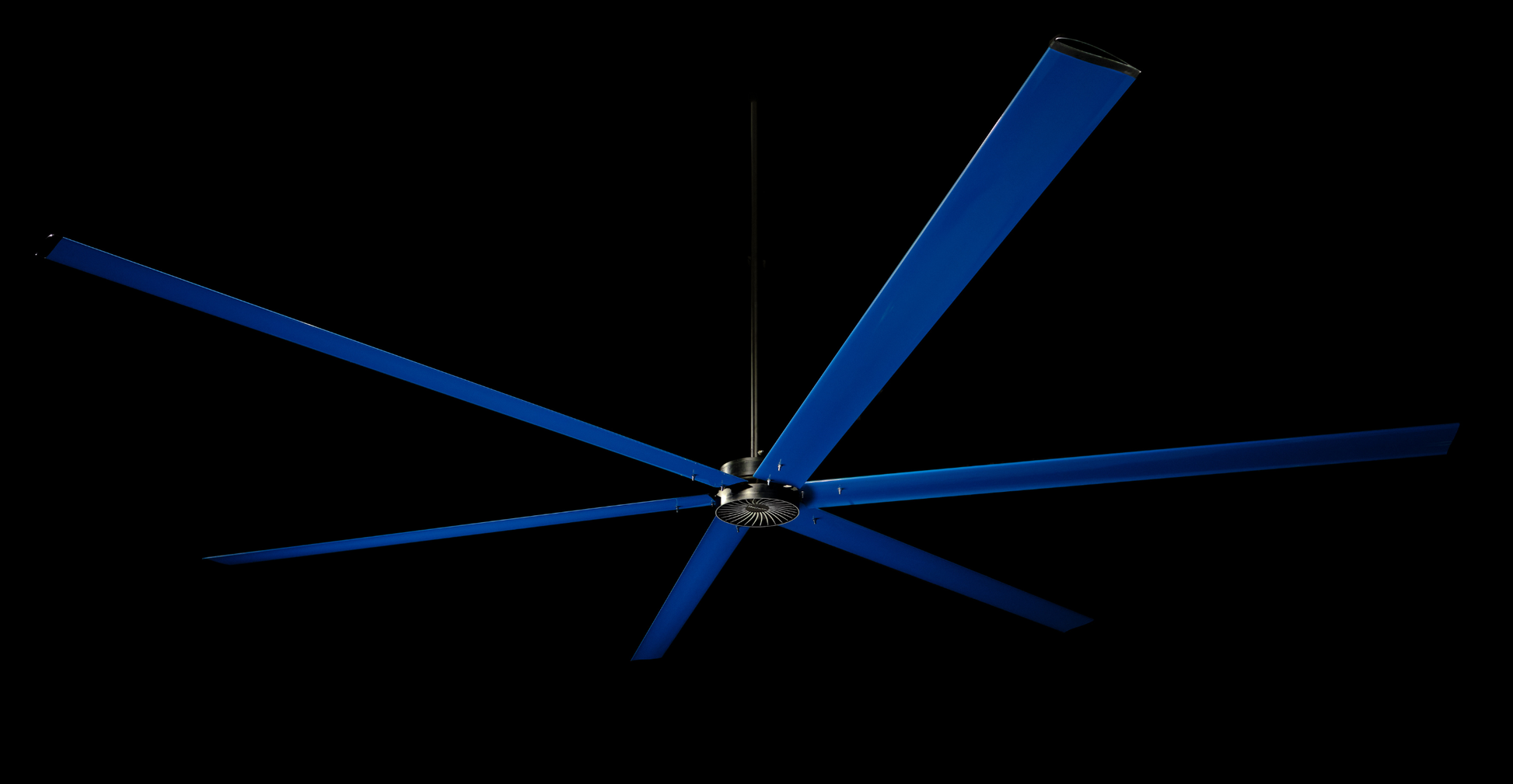

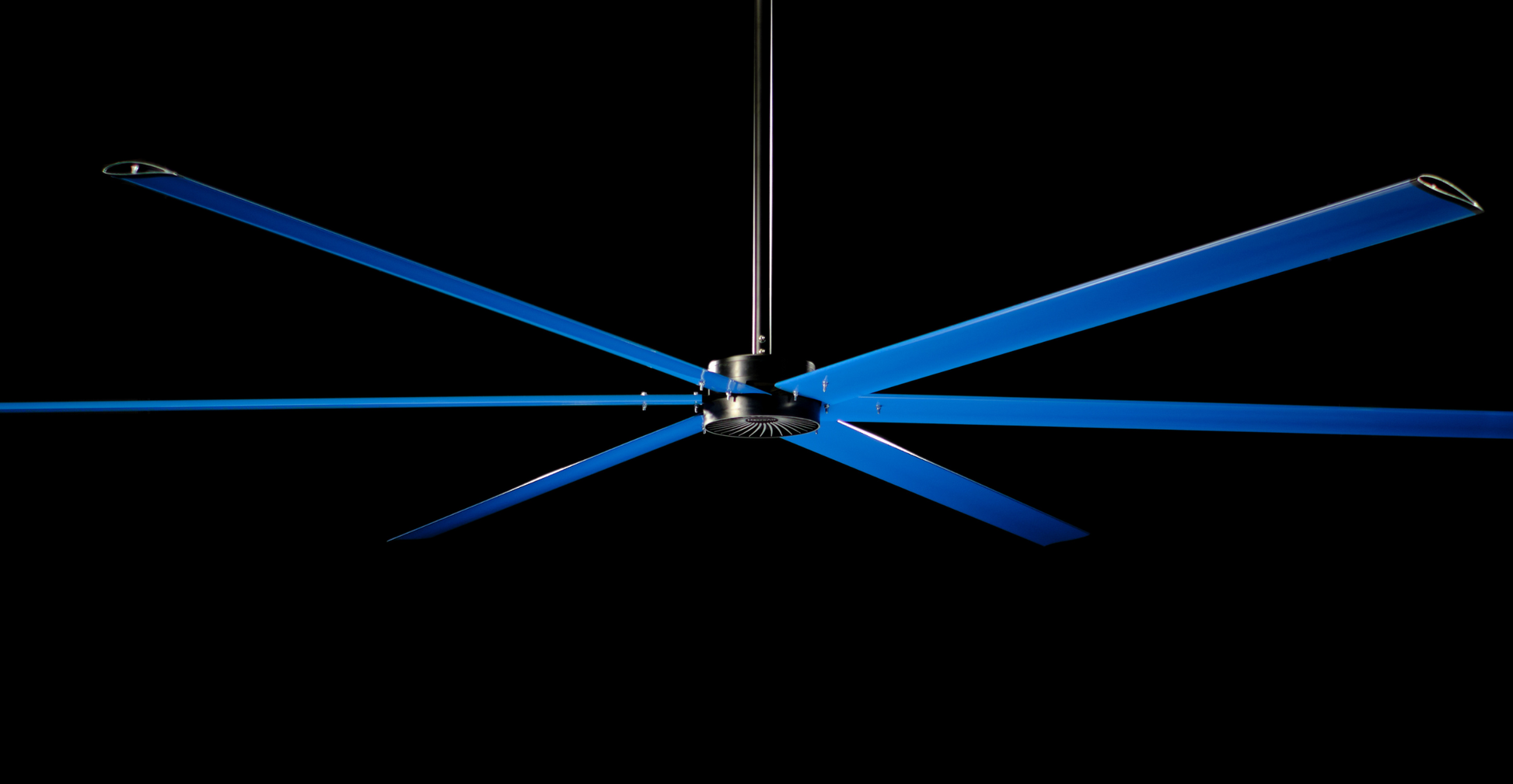

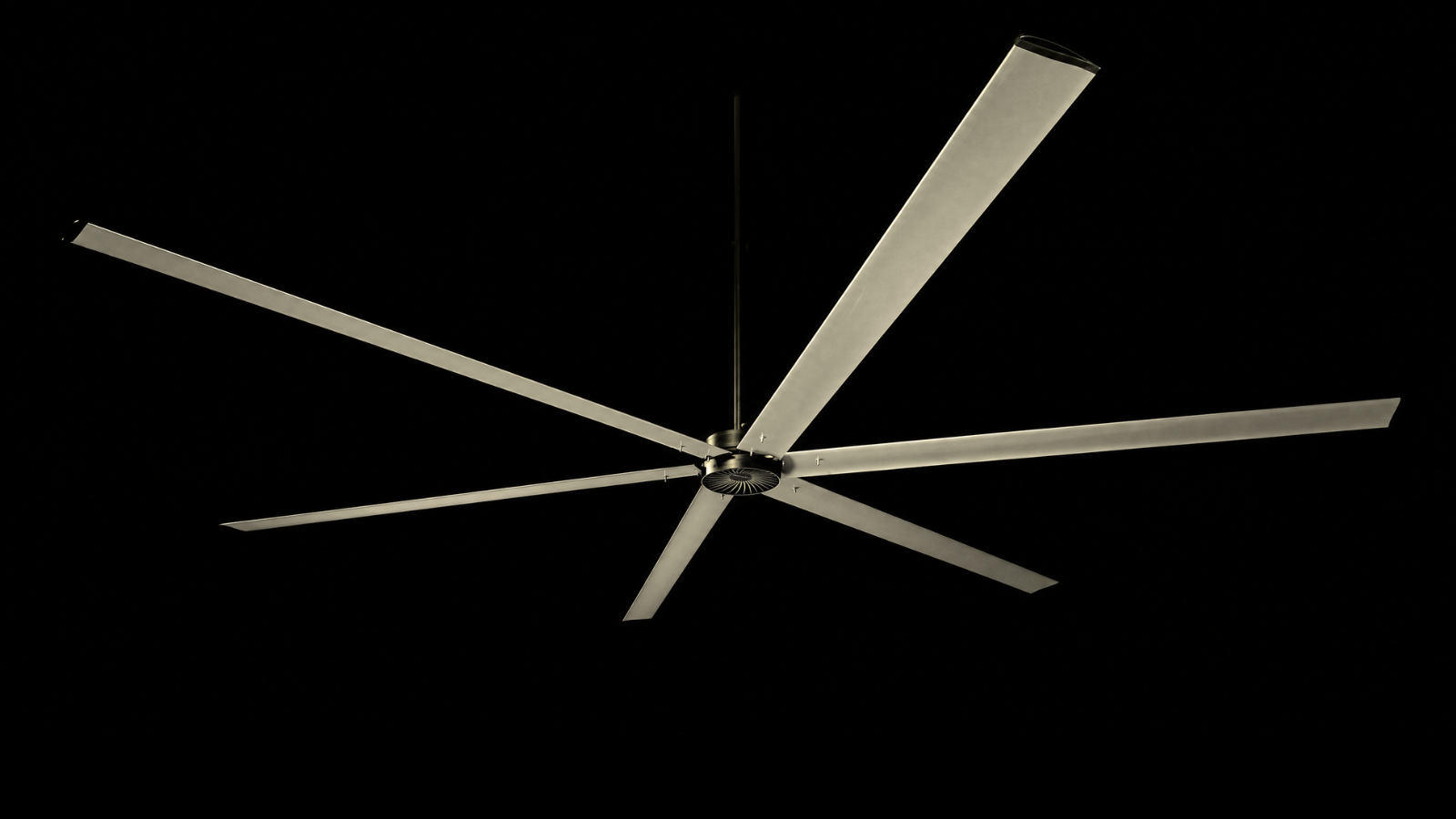

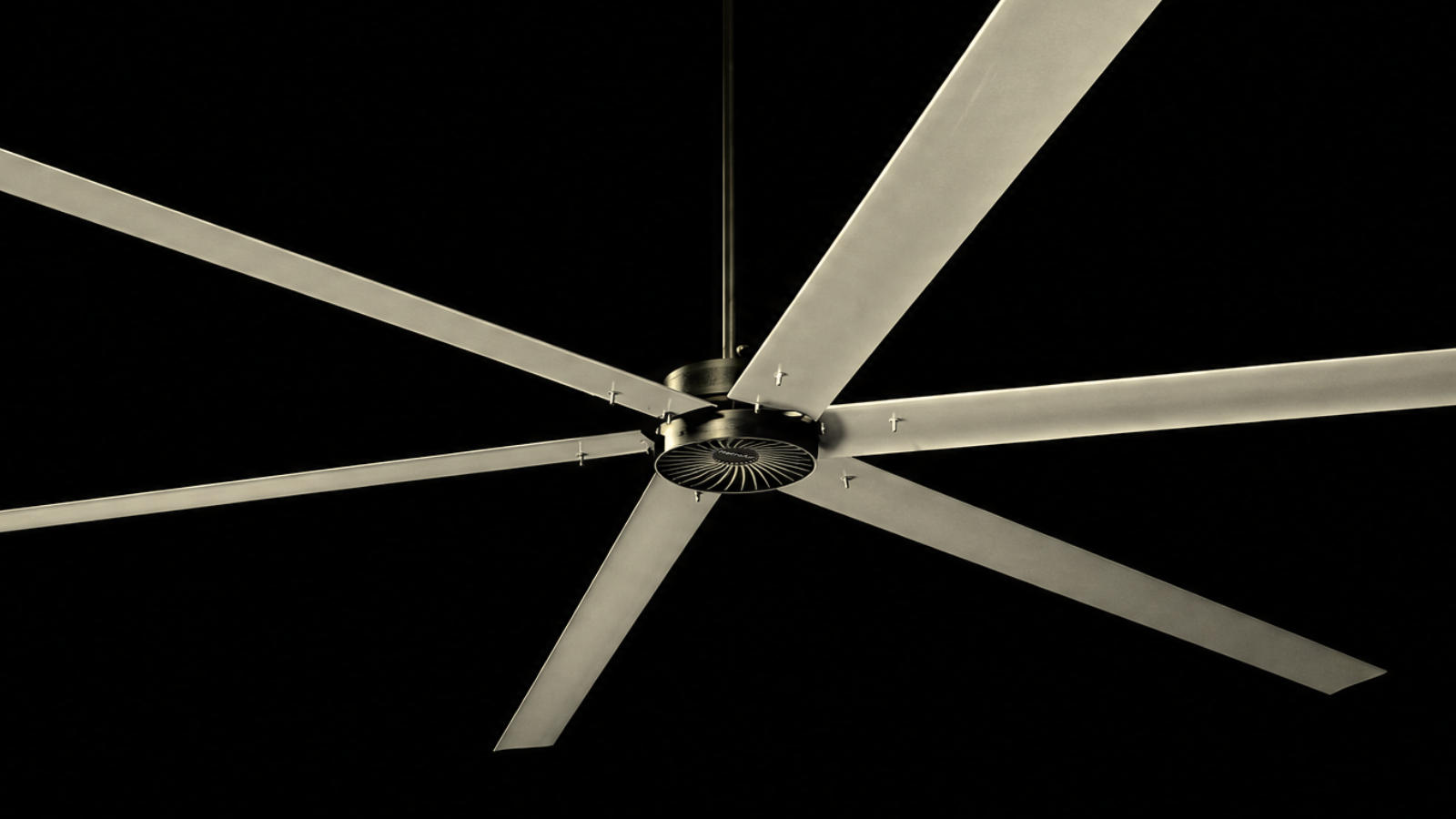

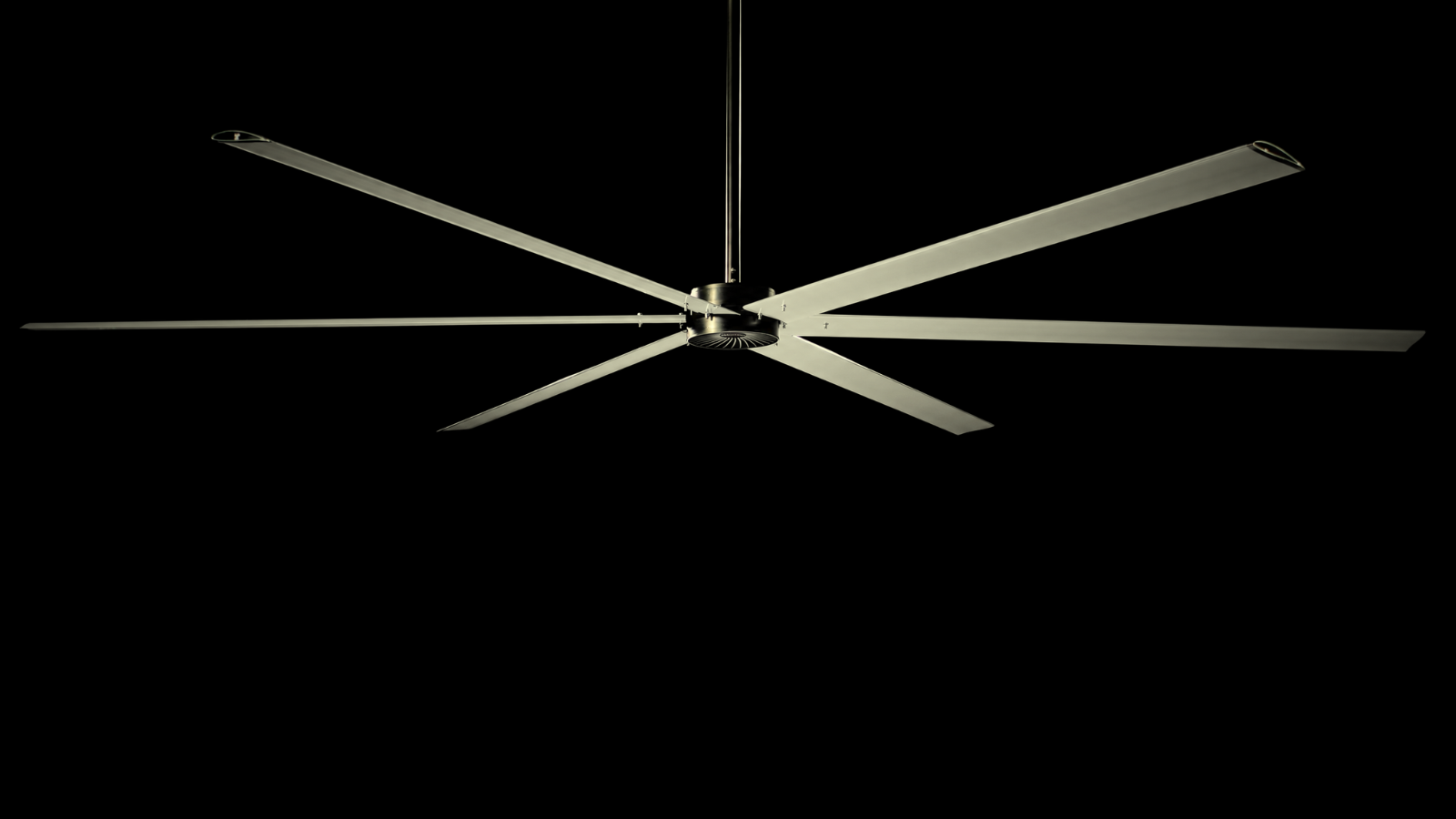

The AVDX is a true powerhouse that can endure the harshest industrial environments. Known for lasting durability and energy savings, this quiet direct drive fan is perfect for larger warehouses and distribution centers.

1 12

Lead Times: 4-6 weeks

View full details
Get a Quote

AVDX Features and Benefits

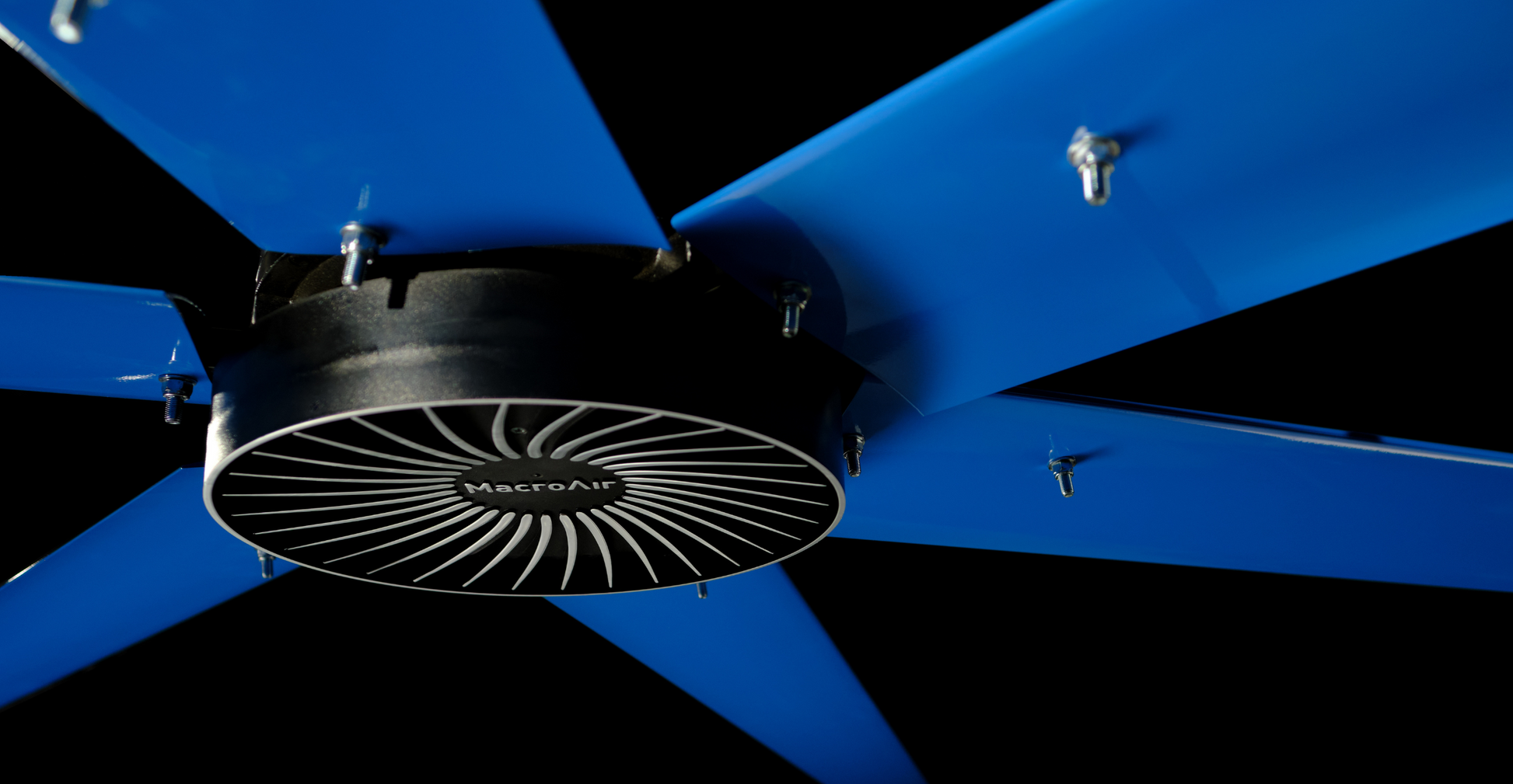

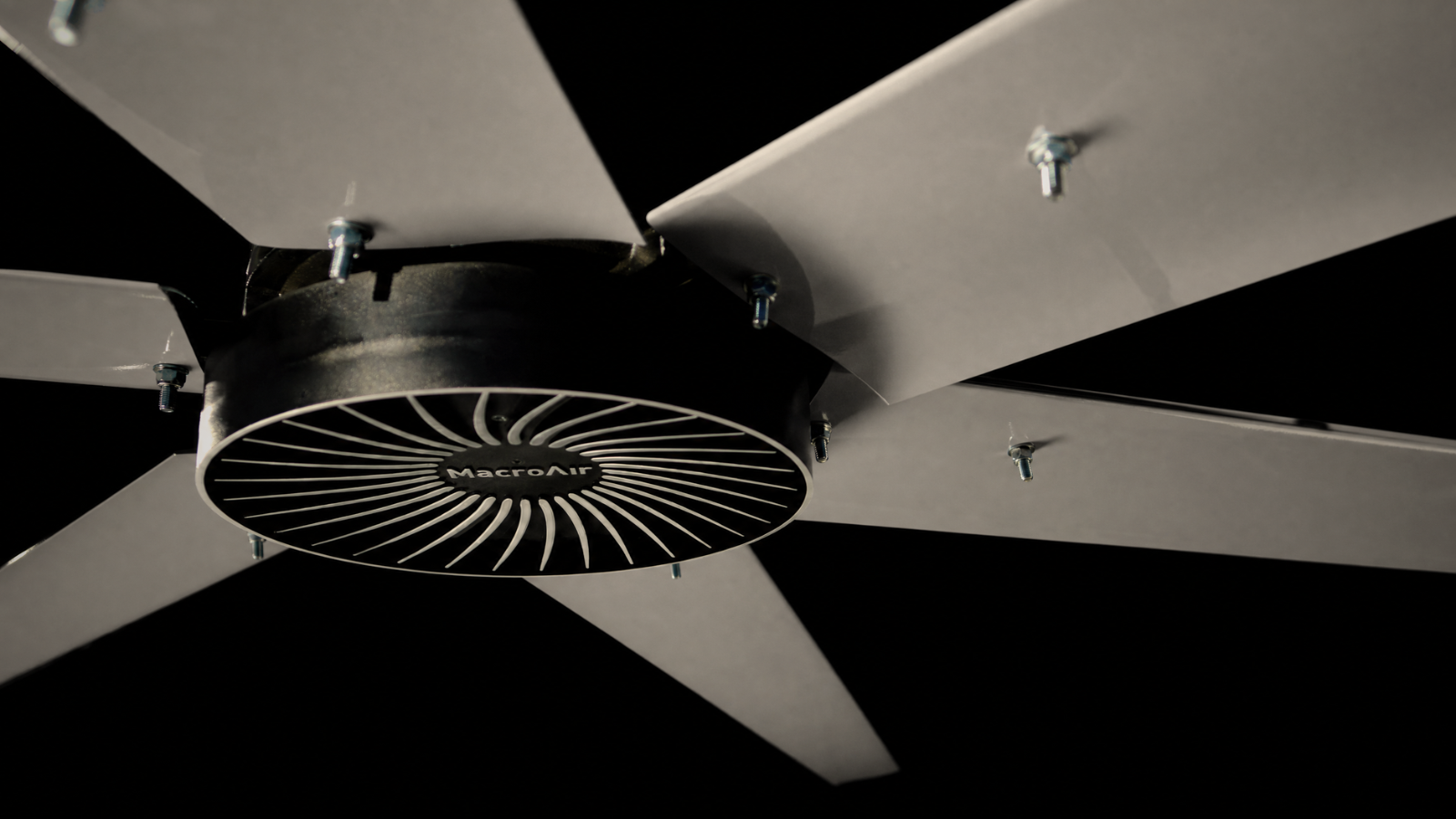

Direct Drive Motor

  • Quiet operation
  • Light weight
  • Less maintenance
  • Unparalleled energy efficiency
  • Low operating costs - an average of $1.31 per 8 hrs to run

6 Clear Coat anodized airfoil blades (8-24 ft)

  • Outside use
  • Rust resistant
  • Corrosion resistant
  • Effective and efficient air movement
  • Wider blade for lighter weight and increased efficiency (7.3” vs 6”)

Variable Frequency Drive

  • Flexibility in controllers
  • High reliability
  • Variable Speed
  • Forward direction operation, to help cool your space
  • Reverse direction operation, to help warm your space
  • Protection of the motor

AirLynk BMS Integration (optional upgrade)

  • Integrates into your BMS
  • Controls many fans at one time
  • Automated
  • Works with your HVAC

Digital wall controller with fault code access

  • Simple operation
  • Easy ground-level troubleshooting and diagnostics
  • IP40

Safety components including safety cable, universal mount with guy wires, and blade retainer links

  • Adaptable and safe for any application
  • Safe fan operation

15 yr Mechanical/10 yr Electrical Warranty

  • Buy with confidence
  • Peace of mind
  • Team of knowledgeable customer service reps to assist you with any questions or needs

Overall Fan Benefits

  • Saves you up to 30% on energy costs
  • Keeps you feeling 8-15° cooler
  • Replaces 13-40 small fans depending on the diameter of the fan
  • Frees up floor space
  • Keeps you and your people, equipment, and products safer
  • Improves building ventilation
  • Decreases humidity levels
  • Destratifies the air within a room

  • *Avg Price Per Hr

    $0.22

  • Max Coverage

    22,000 Sq Ft

  • Diameter Range

    8-24 ft

  • Years of Warranty

    15 Mech / 10 Elec

1 4

*Based on average of all fan diameters and national average rate of $0.15 per kilowatt hour as of May, 2024.

  • Standard Features:

    - Direct Drive motor, rated for indoor/outdoor use*

    - Clearcoat anodized airfoil blades

    - Forward, reverse, variable speed

    - Variable Frequency Drive – Capable of Building Automation Integration (with AirLynk upgrade) and fire alarms

    - Digital wall controller with fault code access

    - Safety Components: safety cable, Universal Mount with guy wires, blade retainer links

  • Includes:

     - 1.0-2.0 HP Direct Drive motor unit (diamete dependent)

     - 8, 10, 12,14, 16, 18, 20, or 24 ft blade set (6 blades total)

     - Universal mount (for mounting the fan to ceiling structure/standard I-beam)

     - Installation hardware (all hardware needed for hanging fan/standard I-beam hardware kit)

     - Drop tube (3 Ft. drop standard)

     - Industrial grade VFD (Variable Frequency Drive)

     - Digital wall controller with fault code access

     - 100 ft of CAT5 cable (connecting wall control to the VFD)

     - 50 ft of motor cable (connecting fan motor to VFD)

     - Installation/Operation manual

  • Specifications:

    - Industrial/Commercial HVLS ceiling fan with 6 anodized aluminum blades (airfoils)

     - 1.0 – 2.0 HP Direct Drive motor (diameter dependent)

     - 156 – 260 lbs.

     - Input voltage: 208 – 240V single phase, 50/60 Hz

     - Most suitable for ceiling heights greater than 20 ft.

     - Rated for indoor and outdoor use. Digital controls area rated for indoor only.

     - High voltage electric cable - NOT INCLUDED (needed for connecting VFD to building power/breaker panel)

     - Professional Installation recommended – licensed electrician

1 3

“We love the variable-adjusted control both in forward and reverse. Given the fans are brushless magnetic, they are very quiet in operation regardless of speed and have no vibration even at full speed which is impressive! VERY HAPPY with our purchase thus far!”

-Wes Armstrong, Manyfold Farm LLC
