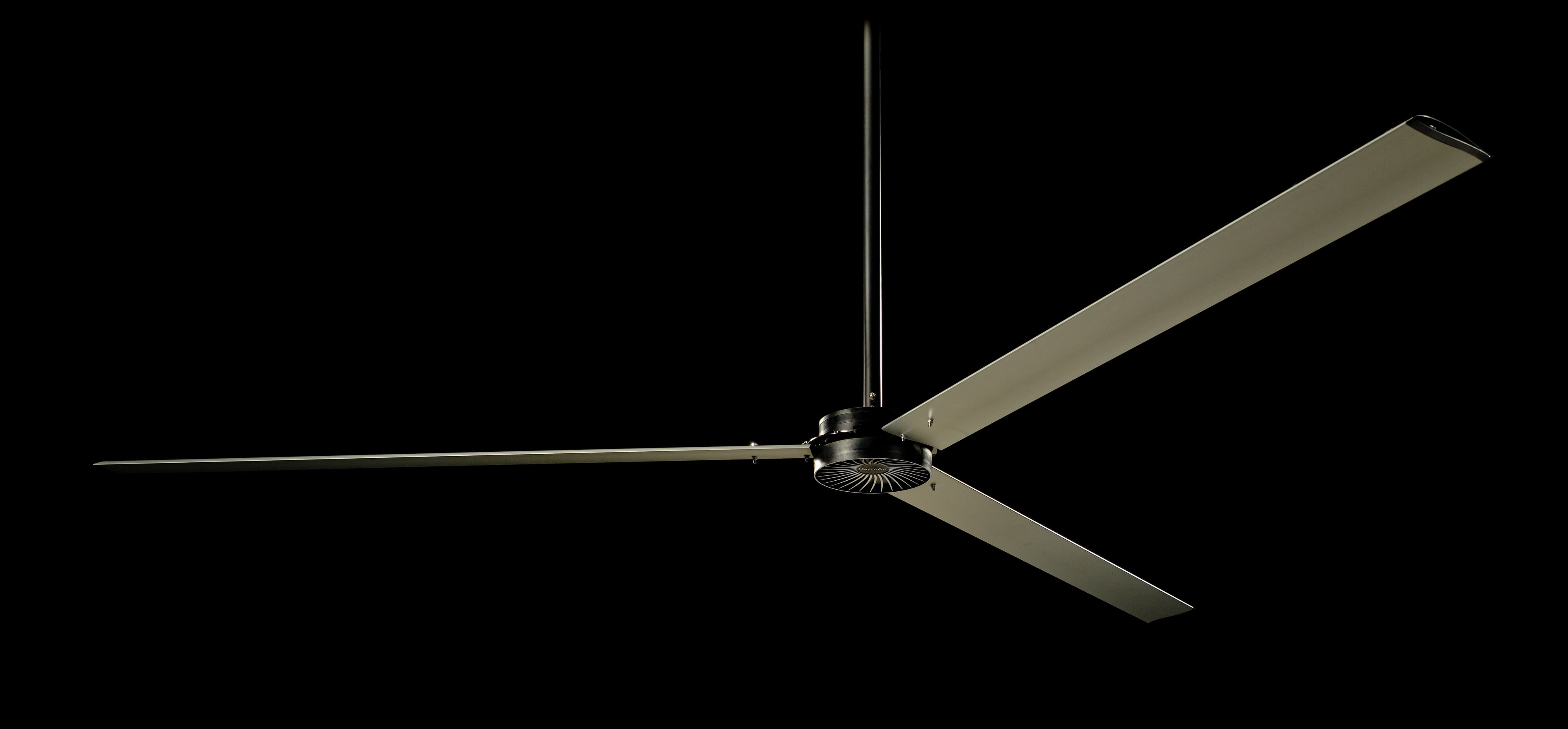

AVD3

The showstopping, three-blade AVD3 is designed to be the optimal balance between form and function. Simplicity redefined. Confident, efficient airflow at a fraction of the price.

Get a Quote

AVD3 Features and Benefits

Direct Drive Motor

  • Quiet operation
  • Light weight
  • Less maintenance
  • Ultra efficient operation
  • Low operating cost - an average of $0.43 per 8 hrs to run

3 Clear coat anodized airfoil blades (8-24 ft)

  • Outside use
  • Rust resistant
  • Corrosion resistant
  • Effective and efficient air movement
  • Sleek, modern design

Variable Frequency Drive

  • Flexibility in controllers
  • High reliability
  • Variable Speed
  • Forward direction operation, to help cool your space
  • Reverse direction operation, to help warm your space
  • Protection of the motor

Digital wall controller with fault code access

  • Simple operation
  • Easy ground-level troubleshooting and diagnostics
  • IP40

Safety components including safety cable, universal mount with guy wires, and blade retainer links

  • Adaptable and safe for any application
  • Safe fan operation

10 yr Mechanical/7 yr Electrical Warranty

  • Buy with confidence
  • Peace of mind
  • Team of knowledgeable customer service reps to assist you with any questions or needs

Overall Fan Benefits

  • Saves you up to 30% on energy costs
  • Keeps you feeling 8-15° cooler
  • Replaces 13-40 small fans
  • Frees up floor space
  • Keeps you and your people, equipment, and products safer
  • Improves building ventilation
  • Decreases humidity levels
  • Destratifies the air within a room

  • *Avg Price Per Hr

    $0.07

  • Max Coverage

    17,000 Sq Ft

  • Diameter Range

    8-24 ft

  • Years of Warranty

    10 Mech /

    7 Elect

1 4

*Based on average of all fan diameters and national average rate of $0.15 per kilowatt hour as of May, 2024.

  • Standard Features:

    - Direct Drive motor

    - Clearcoat anodized airfoil blades with centrifugal cooling

    - Forward, reverse, variable speedRated for indoor and outdoor use*

    - Capable of Building Automation Integration (with AirLynk upgrade) and fire alarm

    - Digital wall controller with fault code access

    - Safety Components: safety cable, Universal Mount with guy wires, blade retainer links

  • Includes:

    - .75-1.0 HP Direct Drive power unit

    - 8, 10, 12, 14,16,18, 20, or 24 ft blade set (3 blades total)

    - AVD Universal mount (standard I-beam)

    - Installation hardware (all hardware needed for hanging fan/standard I-beam hardware kit)

    - Drop tube (3 Ft. drop standard)

    - 25 ft whip cable to connect to an existing power source

    - 100 ft roll of CAT5 cable

    - Digital keypad remote

    - Installation/Operation manual

  • Specifications:

    - Industrial/Commercial HVLS ceiling fan with 3 anodized aluminum blades (airfoils)

    - .75-1.0 HP Equiv. Direct Drive motor

    - 102 – 142 lbs.

    - Input voltage: 208 – 240 volt single phase, 50/60 Hz

    - Most suitable for ceiling heights greater than 12 ft.

    - Rated for indoor and outdoor use. Digital controls area rated for indoor only.

    - High voltage electric cable- NOT INCLUDED (needed for connecting the fan to building power/breaker panel)

    - EC guidelines and some local codes may require your AVD3 to have a means of local disconnect within the “line-of-sight” of your fan. Disconnect switch for AVD3 can be found here – Disconnect Switch for AVD3 and AVD370

    - Professional installation recommended – licensed electrician

1 3

AVD3 Resources

Install Manual

Spec Sheet

Warranty Information

CSI Specification

AVD3 DWG's and PDF's

Need More Info?

Contact MacroAir
