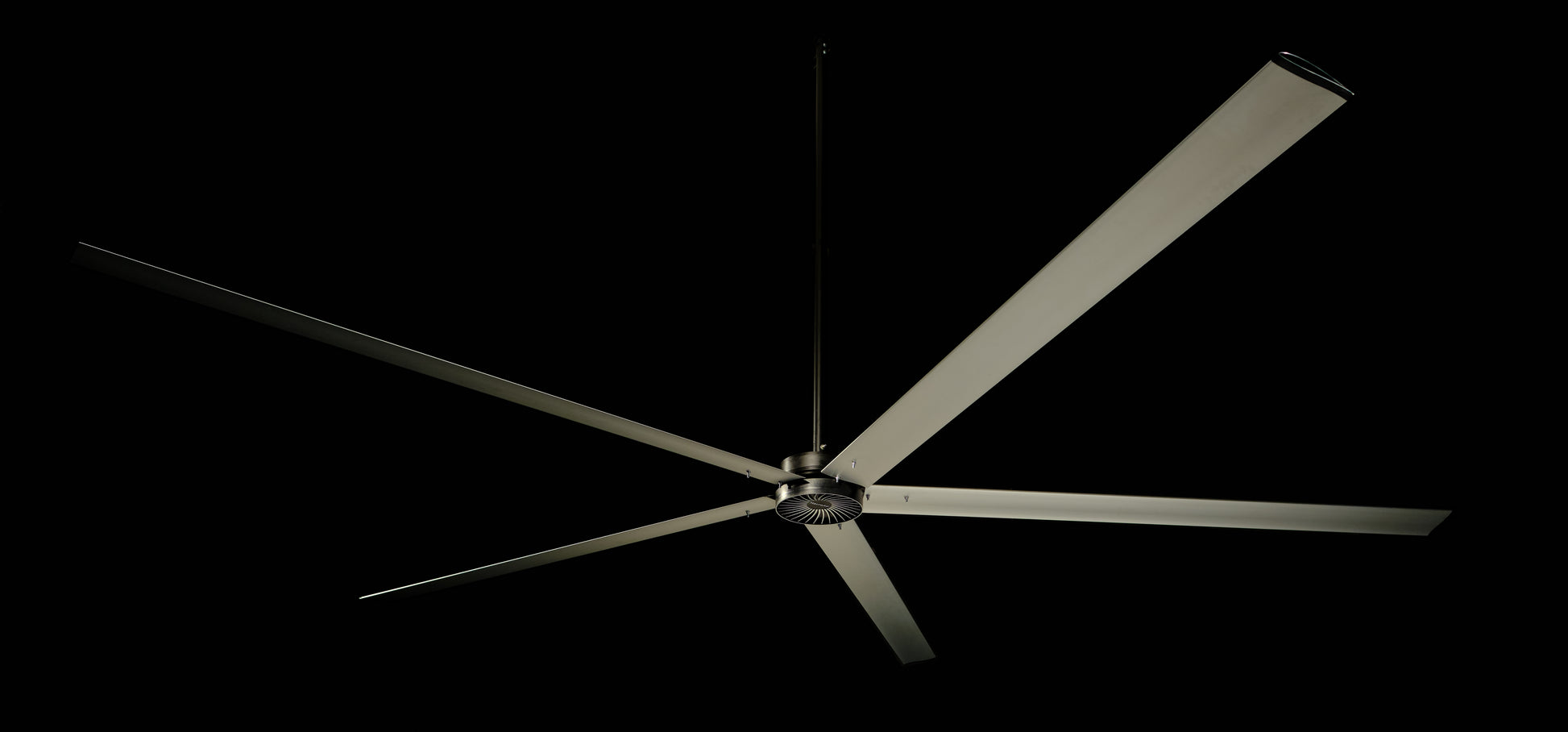

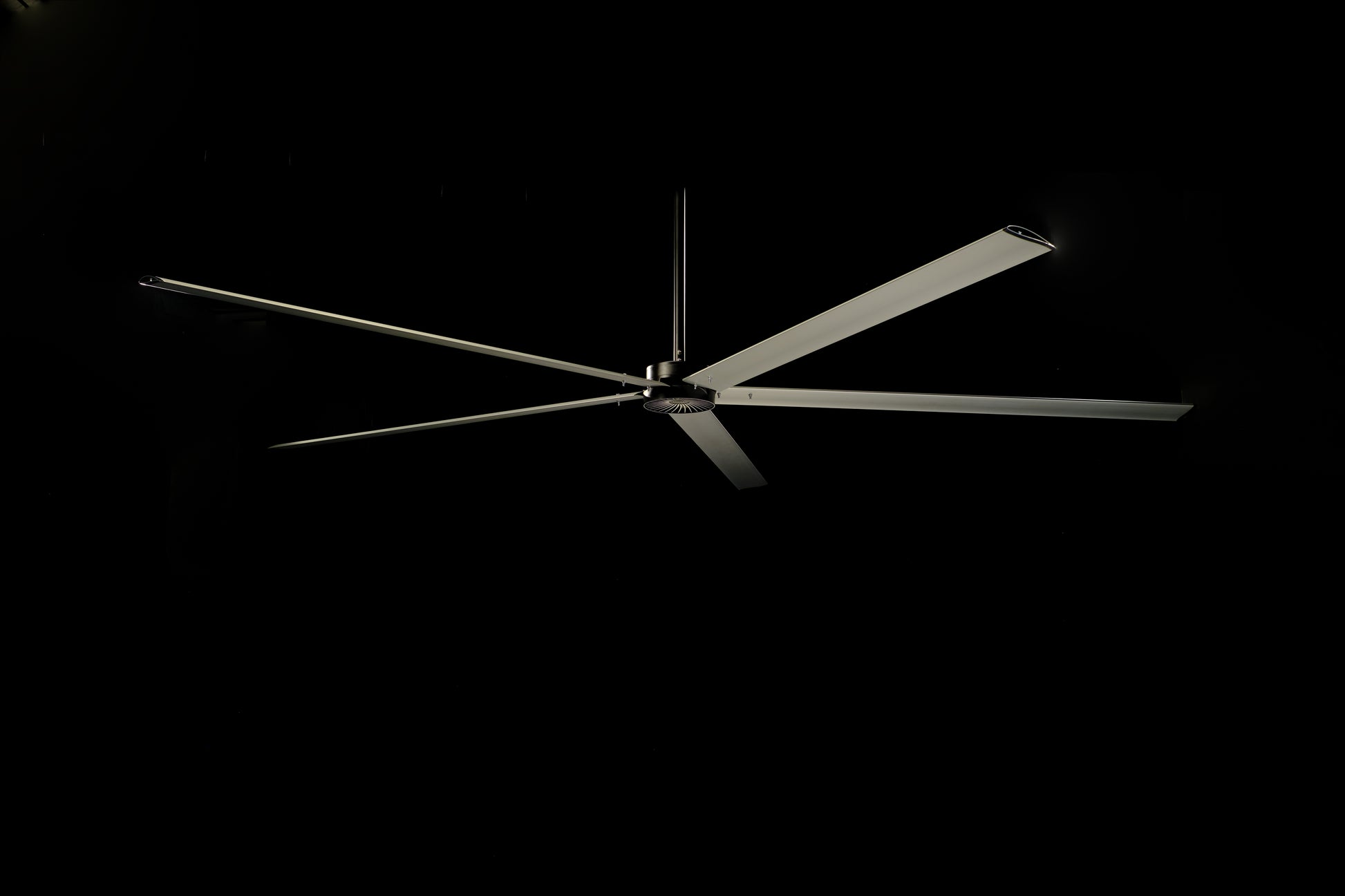

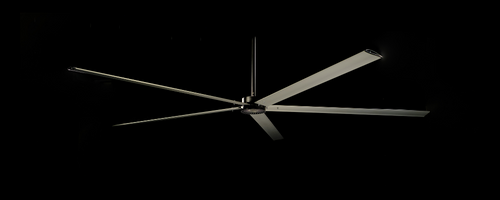

AVD5

The captivating five-blade AVD5 is a perfect composition of purposeful design, superior performance, and cost efficiency. A commanding revelation in air movement.

1 4

AVD5

AVD5

2 Week Lead-Time

Ver todos los detalles
Get a Quote

AVD5 Features and Benefits

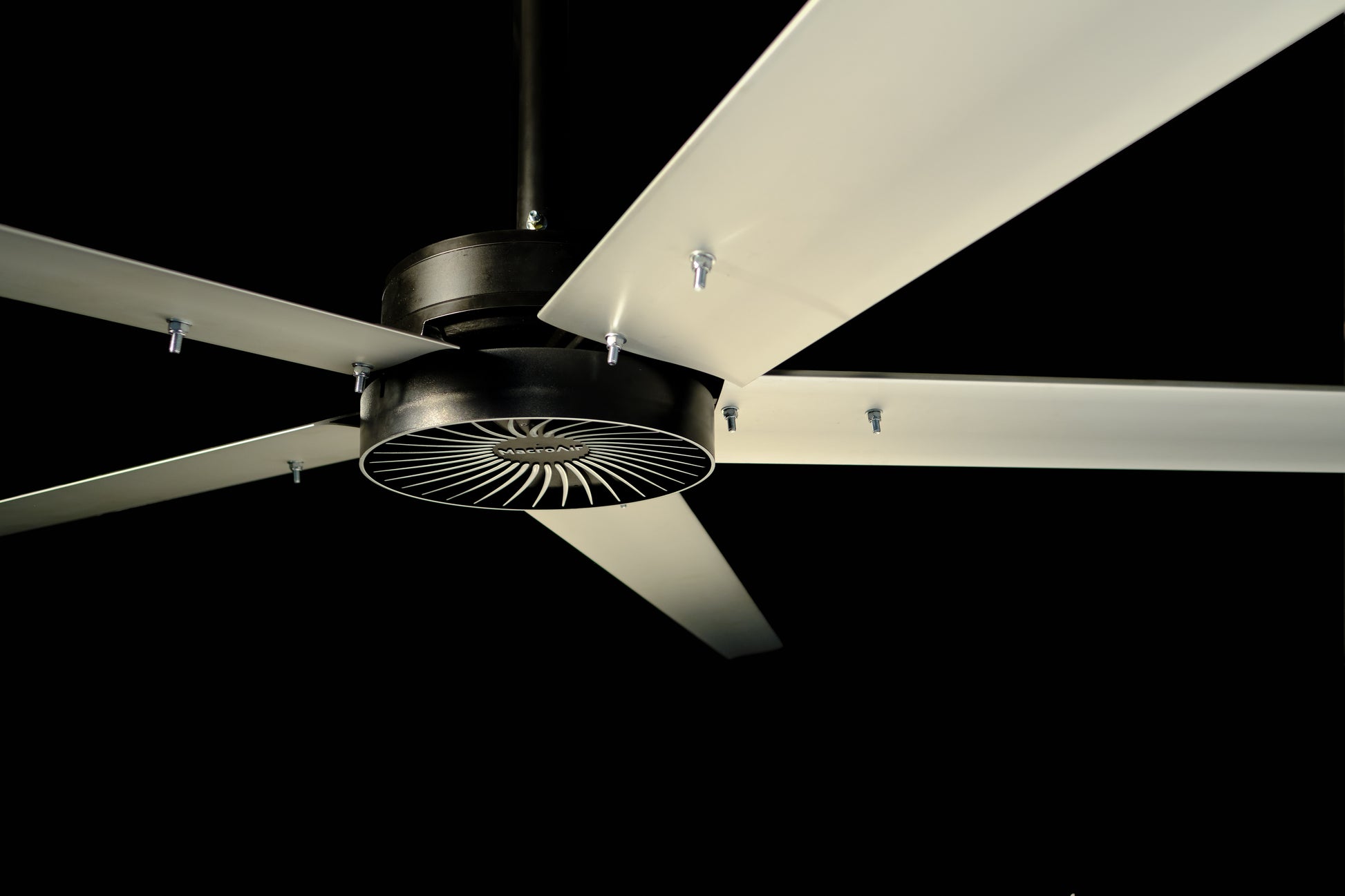

Direct Drive Motor

  • Quiet operation
  • Light weight
  • Low maintenance
  • Unparalleled energy efficiency
  • Low operating costs - an average of $0.20 per hr to run*

 *Rates based on the national average rate of $0.15 per kilowatt hour as of May 2024.

5 Clear Coat anodized airfoil blades (8-24 ft)

  • Outside use
  • Rust resistant
  • Corrosion resistant
  • Effective and efficient air movement

Variable Frequency Drive

  • Flexibility in controllers
  • High reliability
  • Variable Speed
  • Forward direction operation, to help cool your space
  • Reverse direction operation, to help warm your space
  • Protection of the motor

Digital wall controller with fault code access

  • Simple operation
  • Easy ground-level troubleshooting and diagnostics
  • IP40

AirLynk BMS Integration (optional upgrade)

  • Integrates into your Building Management System (BMS)
  • Controls many fans at one time
  • Automated
  • Works with your HVAC

Safety components including safety cable, universal mount with guy wires, and blade retainer links

  • Adaptable and safe for any application
  • Safe fan operation

15 yr Mechanical/10 yr Electrical Warranty

  • Buy with confidence
  • Peace of mind
  • Team of knowledgeable customer service reps to assist you with any questions or needs

Overall Fan Benefits

  • Saves on energy costs
  • Keeps people feeling 8-15° cooler
  • Replaces 13-40 small fans depending on the diameter of the fan
  • Frees up workspace
  • Improves building ventilation
  • Decreases humidity levels
  • Destratifies the air

  • *Avg. Price Per Hr

    $0.20

  • Max Coverage

    20,350 Sq Ft

  • Diameter Range

    8-24 ft

  • Years of Warranty

    15 Mech / 10 Elec

1 4

*Based on average of all fan diameters and national average rate of $0.15 per kilowatt hour as of May, 2024.

  • Standard Features:

    -1.0 HP (equivalent) Direct Drive motor, rated for indoor/outdoor use (motor unit only)

    - Clearcoat anodized airfoil blades

    - Industry-leading onboard electronics for unmatched reliability

    - Forward, reverse, variable speed

    - Integrated VFD/mount enclosure

    - Safety components: safety cable, universal mount with guy wires, blade retainer links

  • Includes:

    - 1.0 HP (equivalent) Direct Drive motor unit

    - 8, 10, 12, 14, 16, 18, 20, or 24 ft blade set (5 blades total)

    - Universal mount (for mounting the fan to ceiling structure/standard I-beam)

    - Installation hardware (all hardware needed for hanging fan/standard I-beam hardware kit)

    - Drop tube (3 ft. drop standard)

    - Industrial grade VFD (Variable Frequency Drive)

    - Digital wall controller with fault code access

    - 100 ft of CAT5 cable (connecting wall control to the VFD)

    - 50 ft of motor cable (connecting fan motor to VFD)

    - Installation/Operation manual

  • Specifications:

    - Industrial/Commercial HVLS ceiling fan with 5 anodized aluminum blades (airfoils)

    - 1.0 HP (equivalent) Direct Drive motor

    - 138.8-177.8 lb hanging weight

    - Input voltage: 208 – 240V single phase, 50/60 Hz, 208 – 240V three phase, 50/60 Hz, and 480V three phase, 50-60 Hz.

    - Most suitable for ceiling heights greater than 20 ft.

    - Rated for outdoor use. This applies to the fan unit only and does not include controller, control panel, and accessories.

    - High voltage electric cable - NOT INCLUDED (needed for connecting VFD to building power/breaker panel)

    - Professional installation by a licensed electrician recommended

1 3

“We love the variable-adjusted control both in forward and reverse. Given the fans are brushless magnetic, they are very quiet in operation regardless of speed and have no vibration even at full speed which is impressive! VERY HAPPY with our purchase thus far!”

-Wes Armstrong, Manyfold Farm LLC

More Information

Warranty

15 Year Mechanical Warranty

10 Year Electrical Warranty

Shipping

Shipping: 2 week lead time

Return Policy

Return Policy for Online Purchases

If you are not 100% satisfied with your purchase, you can return the product(s) and get a full refund or exchange the product for another one. (Excluding labor/ installation services which have been completed)

Products can be returned for up to 30 days from the date you purchased it. (Excluding any labor/installation services which have been completed)

Any product(s) you return must be in the same condition you received it and in the original packaging.

Customer will be responsible for a 5% restocking fee plus any return freight charges.

For all other purchases see Return Merchandise Authorization in Warranty Documentation

To process a return please contact our technical support team at 1 (909) 975-7480

Downloads

Install Manual

Install Manual (Rapid Mount)

Specification Sheet

CSI Specifications (Coming Soon)

Warranty Information

International Purchasing

Duties and Taxes:
Import duties, taxes, and brokerage fees are not included in the product price. These charges are the buyer’s responsibility upon delivery. The buyer may check with the country’s customs office to determine if there will be additional costs.

Regulations and Restrictions:

The buyer is responsible for obtaining information regarding their country’s laws, regulations, and restrictions that may apply when purchasing our products. By placing an international order (shipping outside of the United States of America) the buyer is responsible for abiding by their country’s laws, regulations, and restrictions. If a product is seized and destroyed by customs, we will NOT be responsible for the losses, product, or shipping refunds.

Please allow an additional 7-10 business days to process your order. If you have any questions or concerns, please contact our customer support team at 866-668-3247.

Need Custom Options?

If you need custom options such as color customizations, drop length or to purchase large amount of fans give our sales team a call at 866-668-3247 or click below
