INTRODUCING THE ALL NEW AVDX.

Streamlined in Form. Smart in Function. Powerful Performance for Every Environment.

Ir directamente a la información del producto
1 de 4

Lead Times: 2 weeks

Ver todos los detalles
  • Industrial

    The AVDX is built for industrial environments like warehouses, hangars, barns, and auto shops - delivering powerful airflow, heavy-duty durability, and efficient cooling to keep operations running smoothly.

  • Commercial

    Easily cool down gyms, restaurants, offices, and retail stores with the AVDX. It delivers quiet, powerful airflow and works with your HVAC systems to improve air distribution, enhance comfort levels, and reduce energy costs.

  • Institutional

    Schools, government buildings, and public facilities benefit from the AVDX’s powerful airflow. Its quiet, consistent performance improves indoor air quality, reduces energy costs, and enhances comfort across large spaces.

  • Warranty

    15 yr M/ 10 yr E/ 1 yr L
  • Diameter

    8-24 ft

  • Max Coverage

    22,000 sq ft

  • Motor Type

    Direct Drive

  • Motor Profile

    Slim

AVDX - A Direct Drive Ceiling Fan Standard Features

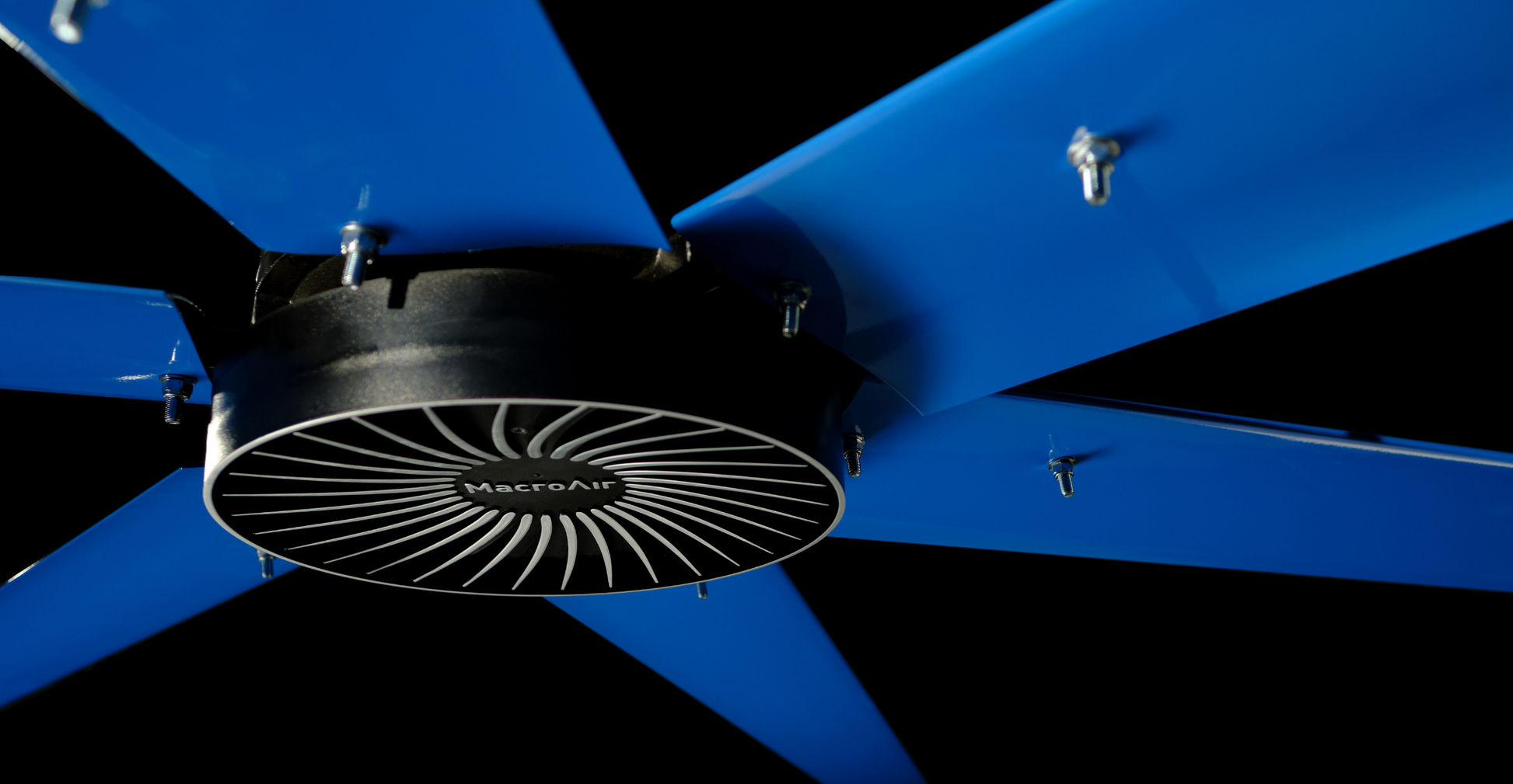

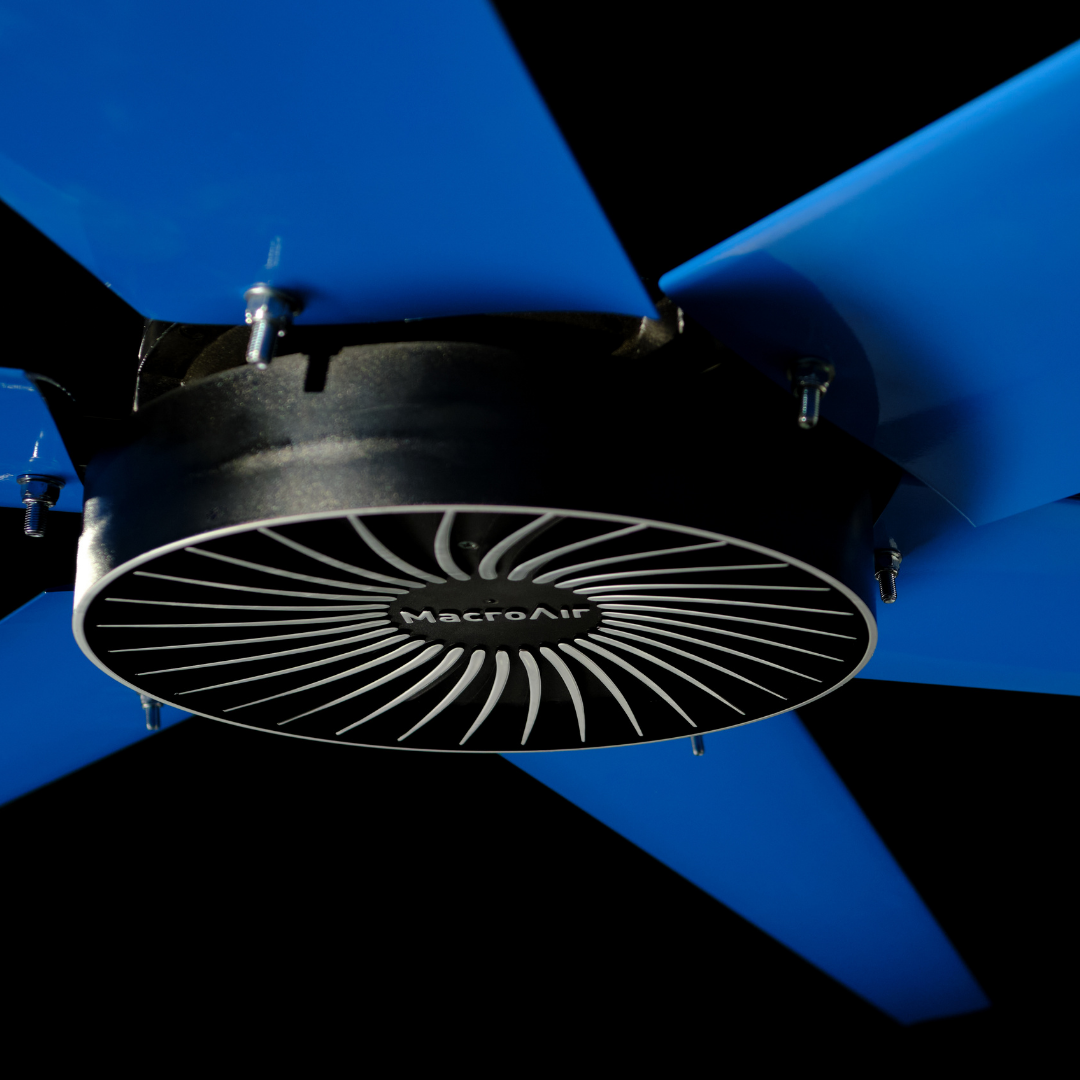

Direct Drive Motor

  • Quiet operation
  • Light weight
  • Less maintenance
  • Unparalleled energy efficiency
  • Low operating costs - an average of $1.31 per 8 hrs to run

6 Silver Clear-Coat Anodized Airfoil Blades

  • Outside use
  • Rust resistant
  • Corrosion resistant
  • Effective and efficient air movement
  • Wider blade for lighter weight and increased efficiency (7.3” vs 6”)

Variable Frequency Drive

  • Flexibility in controllers
  • High reliability
  • Variable Speed
  • Forward direction operation, to help cool your space
  • Reverse direction operation, to help warm your space
  • Protection of the motor

Digital wall controller with fault code access

  • Simple operation
  • Easy ground-level troubleshooting and diagnostics
  • IP40

AirLynk BMS Integration (optional upgrade)

  • Integrates into your BMS
  • Controls many fans at one time
  • Automated
  • Works with your HVAC

Safety components: safety cable, universal mount w/ guy wires, & blade retainer links

  • Adaptable and safe for any application
  • Safe fan operation

Overall Fan Benefits

  • Saves you up to 30% on energy costs
  • Keeps you feeling 8-15° cooler
  • Replaces 13-40 small fans depending on the diameter of the fan
  • Frees up floor space
  • Keeps you and your people, equipment, and products safer
  • Improves building ventilation
  • Decreases humidity levels
  • Destratifies the air within a room
  • Includes:

    • 1-2 HP equivalent direct drive motor unit
    • Blade set: 6 total blades
    • Diameters available: 8, 10, 12,14, 16, 18, 20, 24 ft
    • Universal mount (ceiling structure/standard I-beam)
    • Installation hardware (for fan/standard I-beam kit)
    • Drop tube (3 Ft. drop standard)
    • Industrial grade VFD (Variable Frequency Drive)
    • Digital wall controller with fault code access
    • 100 ft of CAT5 cable (connecting wall control to the VFD)
    • 50 ft of motor cable (connecting fan motor to VFD)
    • Installation/Operation manual
    • Safety cable, guy wires, & blade retainers
  • Specifications:

    • Industrial/Commercial HVLS ceiling fan
    • 1-2 HP equivalent direct drive motor
    • 6 anodized aluminum blades
    • CFMs (100% 8'-24'): 37,822-246,625
    • CFEIs (40%/100%): 1.59/1.29-2.08/1.32
    • Hanging weight: 104-213 lbs.
    • Most suitable for ceiling heights greater than 20 ft.
    • Rated: Indoor/outdoor; digital controls: indoor only.
    • 208–240V single or three phase 480V three phase
    • 50/60Hz
1 de 2

*High voltage electric cable not included (needed for connecting VFD to building power/breaker panel).

*Professional Installation recommended by a licensed electrician.

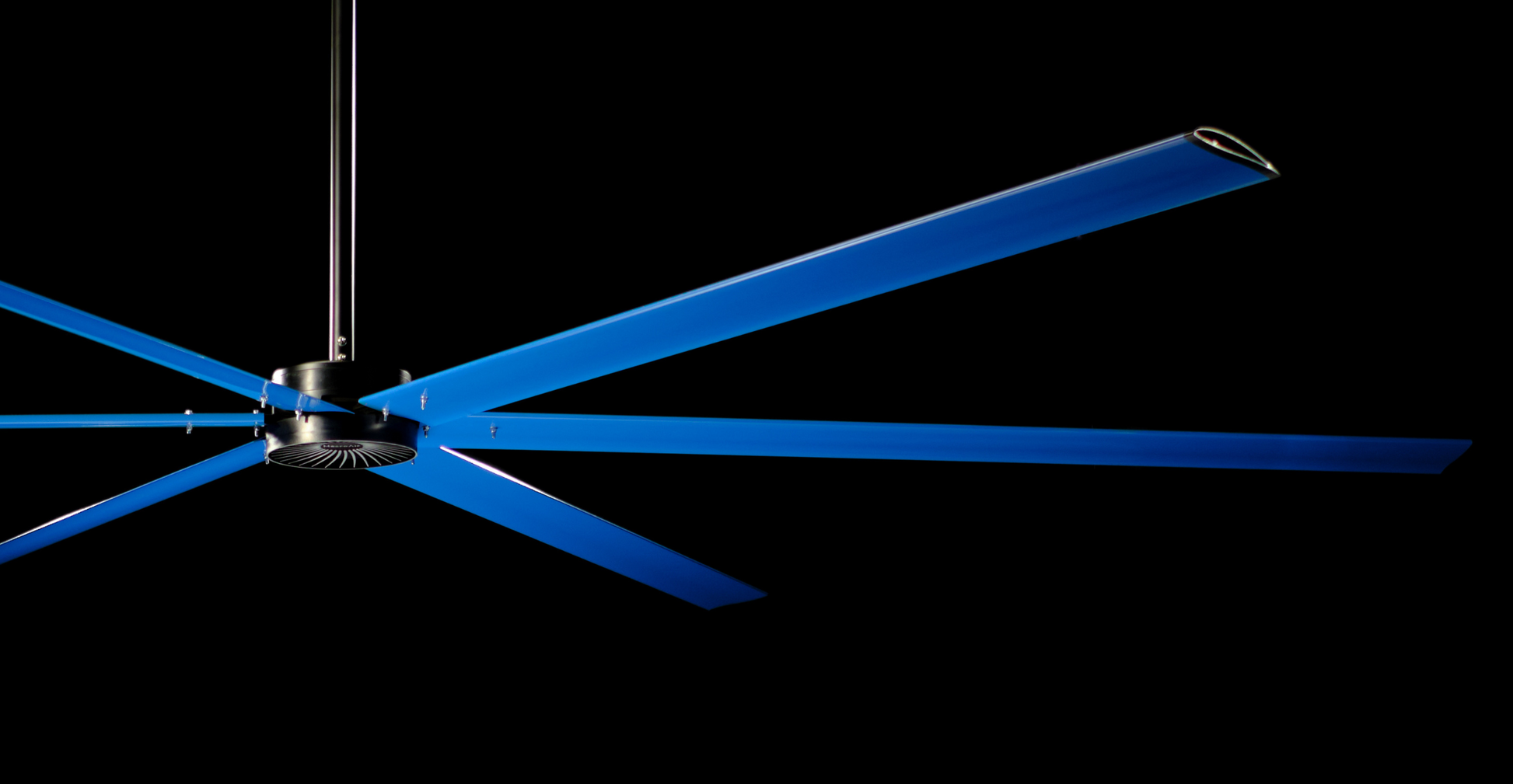

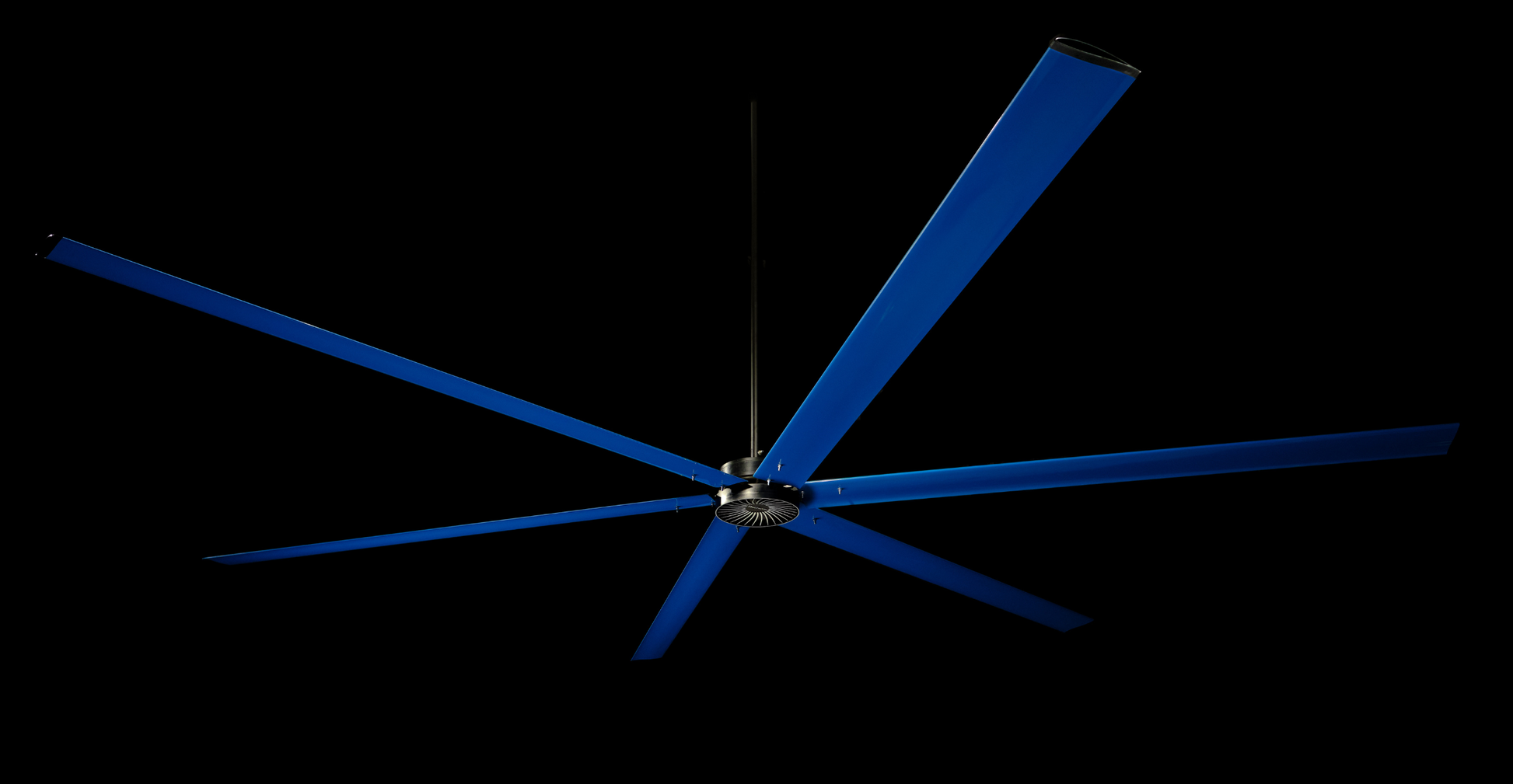

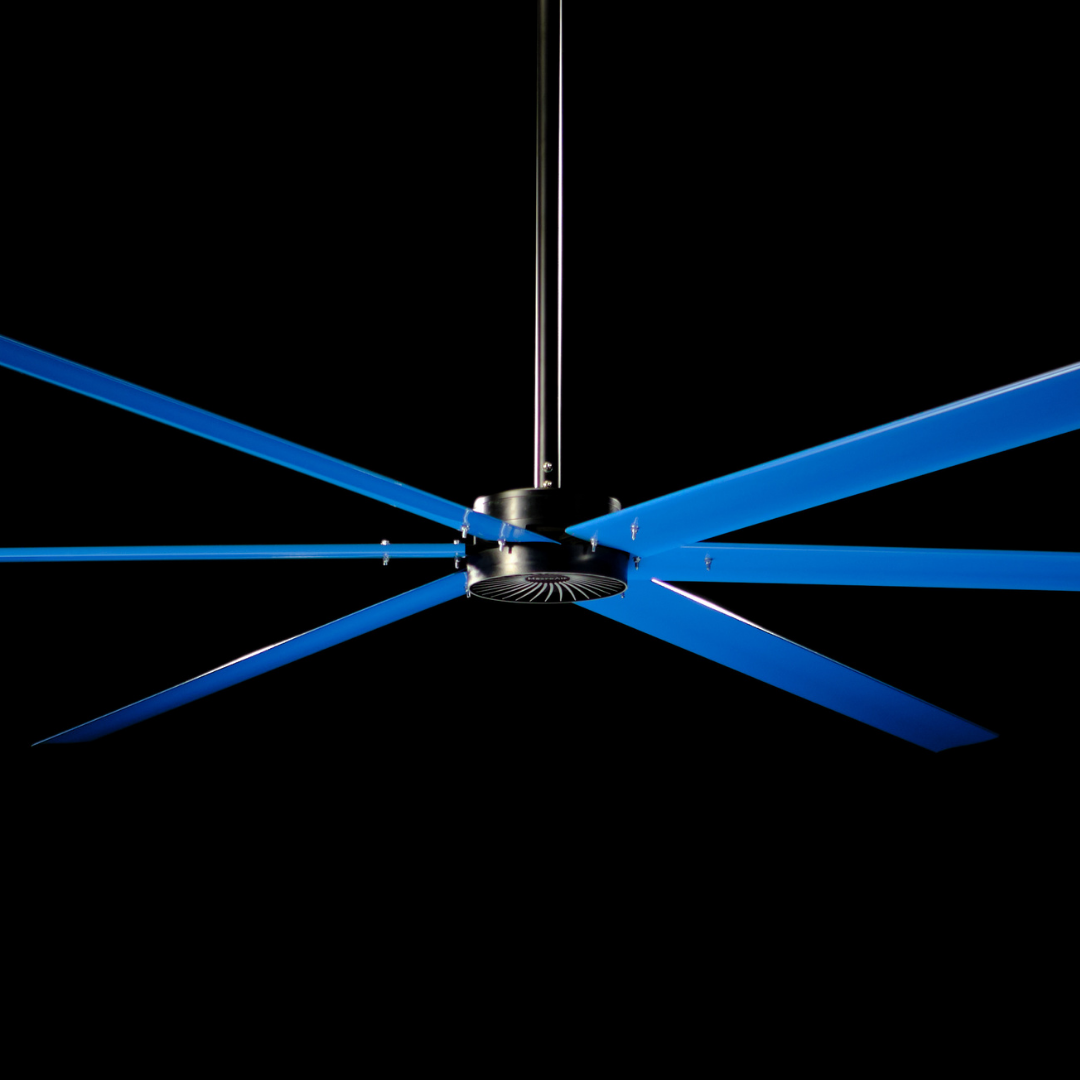

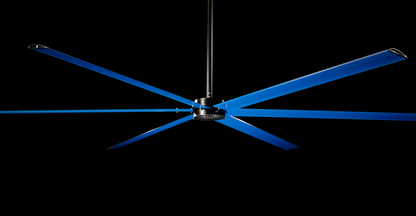

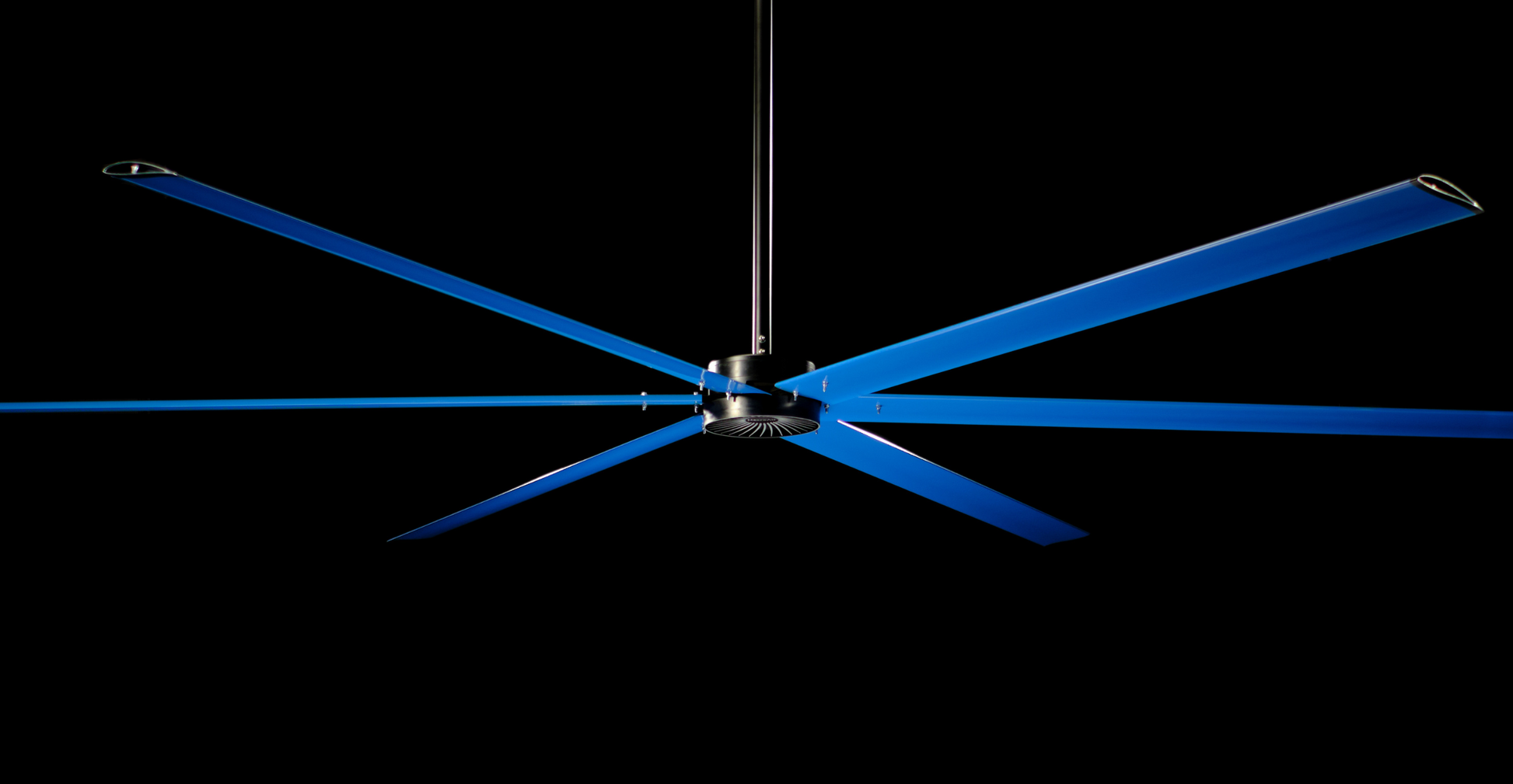

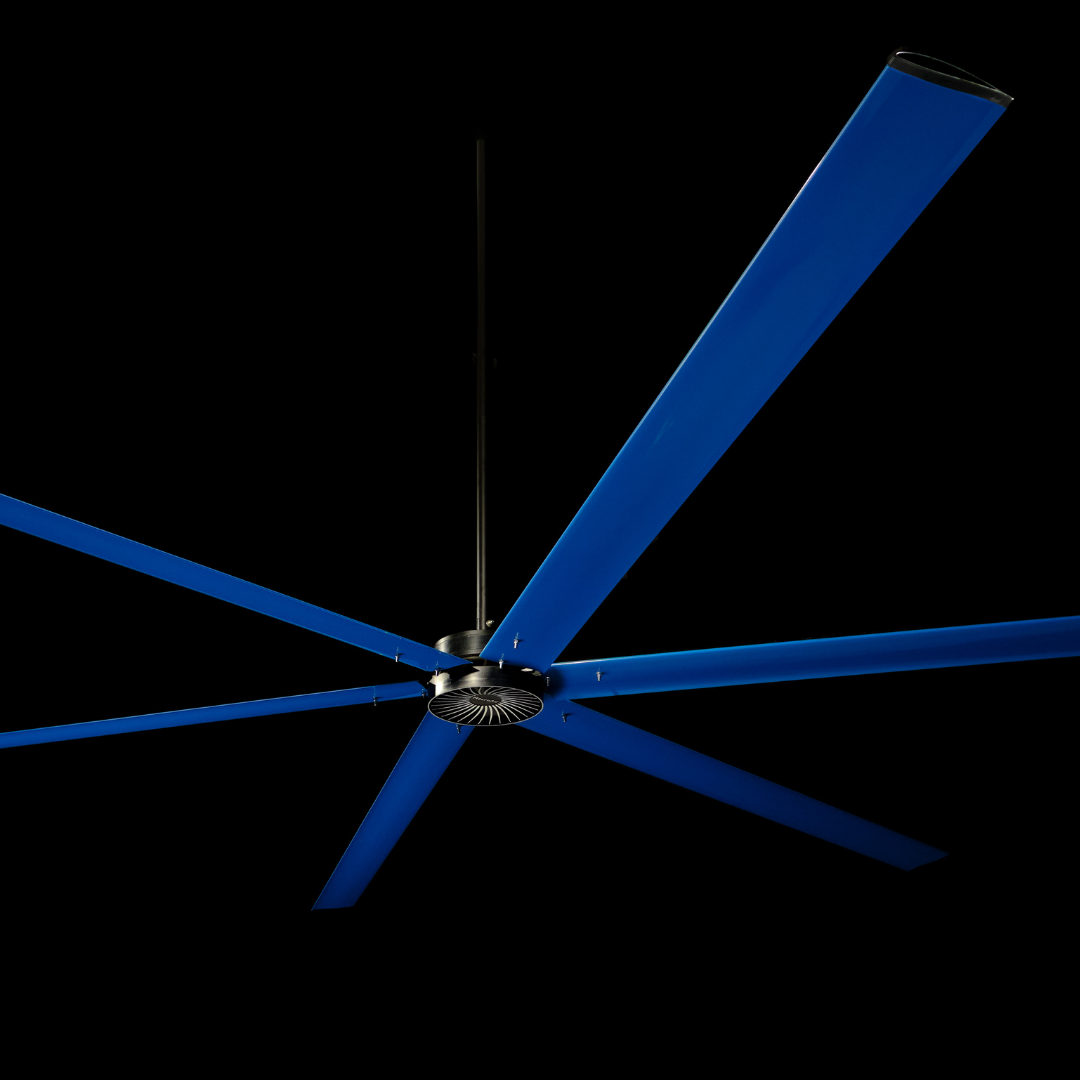

*Fan shown with optional custom color powder coating.

AVD Light Kit: Lighting the Way

Illuminate your space with the AVD Light Kit, designed to seamlessly integrate with the AVDX for powerful, energy-efficient lighting in commercial and industrial environments.

  • Available for the AVDX, AVD5, AVD3, and AVD370
  • Simple, intuitive installation
  • Designed for ceiling heights of 16 feet plus
  • Supports efficiency by combining airflow & lighting into one appliance
  • Can be retrofitted on previously installed fans or installed w/new fans
