Guy Wire Kit
Guy Wire Kit
Couldn't load pickup availability
What You Get in Your Guy Wire Kit
- 4 Wire Ropes: 1/8" Galvanized Steel Aircraft Cables, 19ft (A), 23ft (B), 33ft (C)
- Guy Wire Band Kit
- 4 Turn Buckles
- 1 Elastic Cord
- 4 1/4” Quick Links
- 1 Cord Clip
- 8 Wire Rope Clamps
Product Guidelines
- Guy wires are REQUIRED for a Universal Mount.
- All 4 guy wires must be used.
- Guy wires must be taut so there is no slack.
- Turnbuckles must not be over-tightened.
- Hand-tighten turnbuckles - do not use tools.

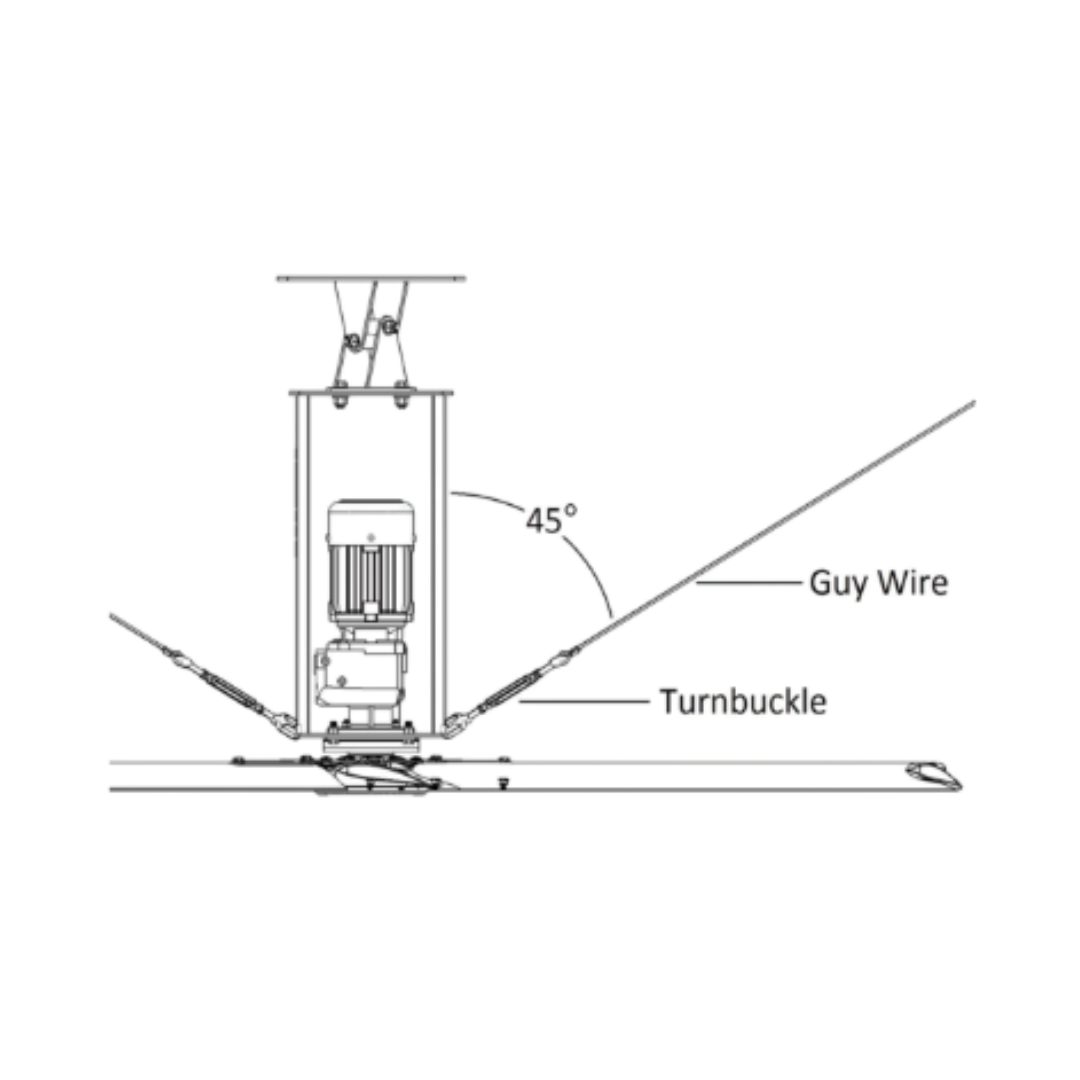

- Guy wires should be at a 45° angle from motor.
- Secure to building structure by eye lag hardware.
- NEVER wrap guy wires around a structure.
How Do I Know What Guy Wire Kit to Select?
-
1. Measure Your Downrod
Determine the total length of the downrod installed with your fan from ceiling to motor.
-
2. Match the Length Range

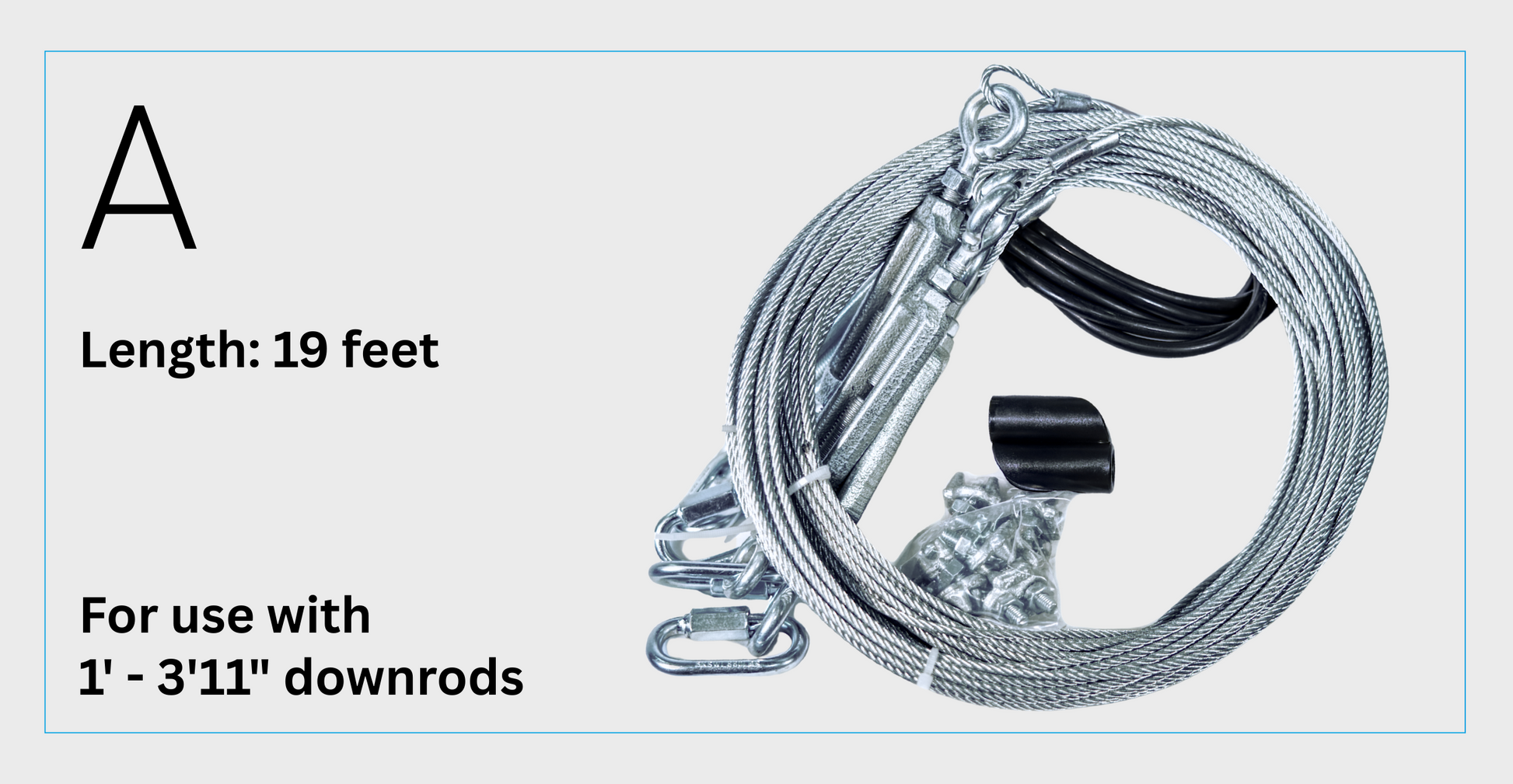

- 1'–3'11" = 19" guy wire kit (A)

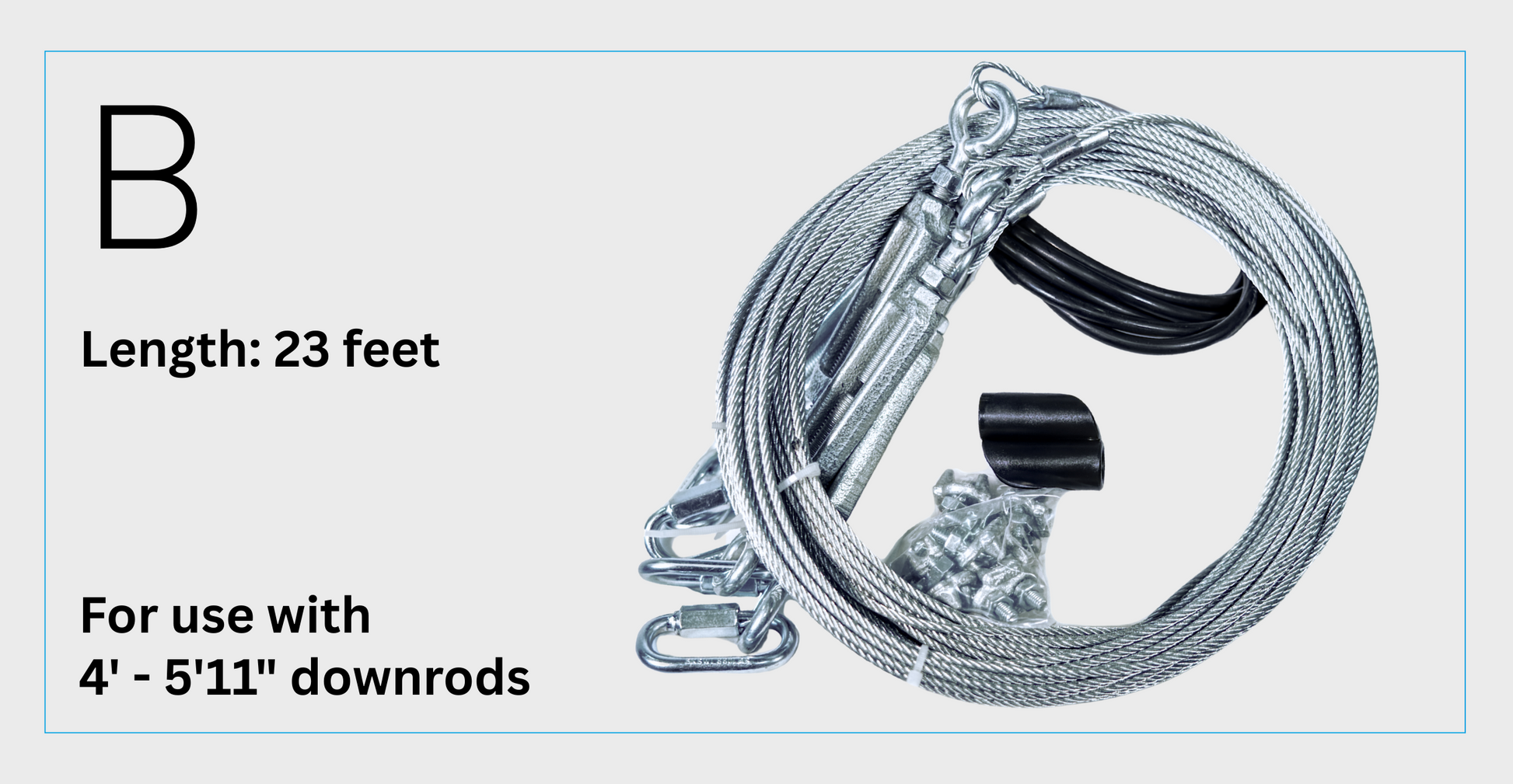

- 4'–5'11" = 23' guy wire kit (B)

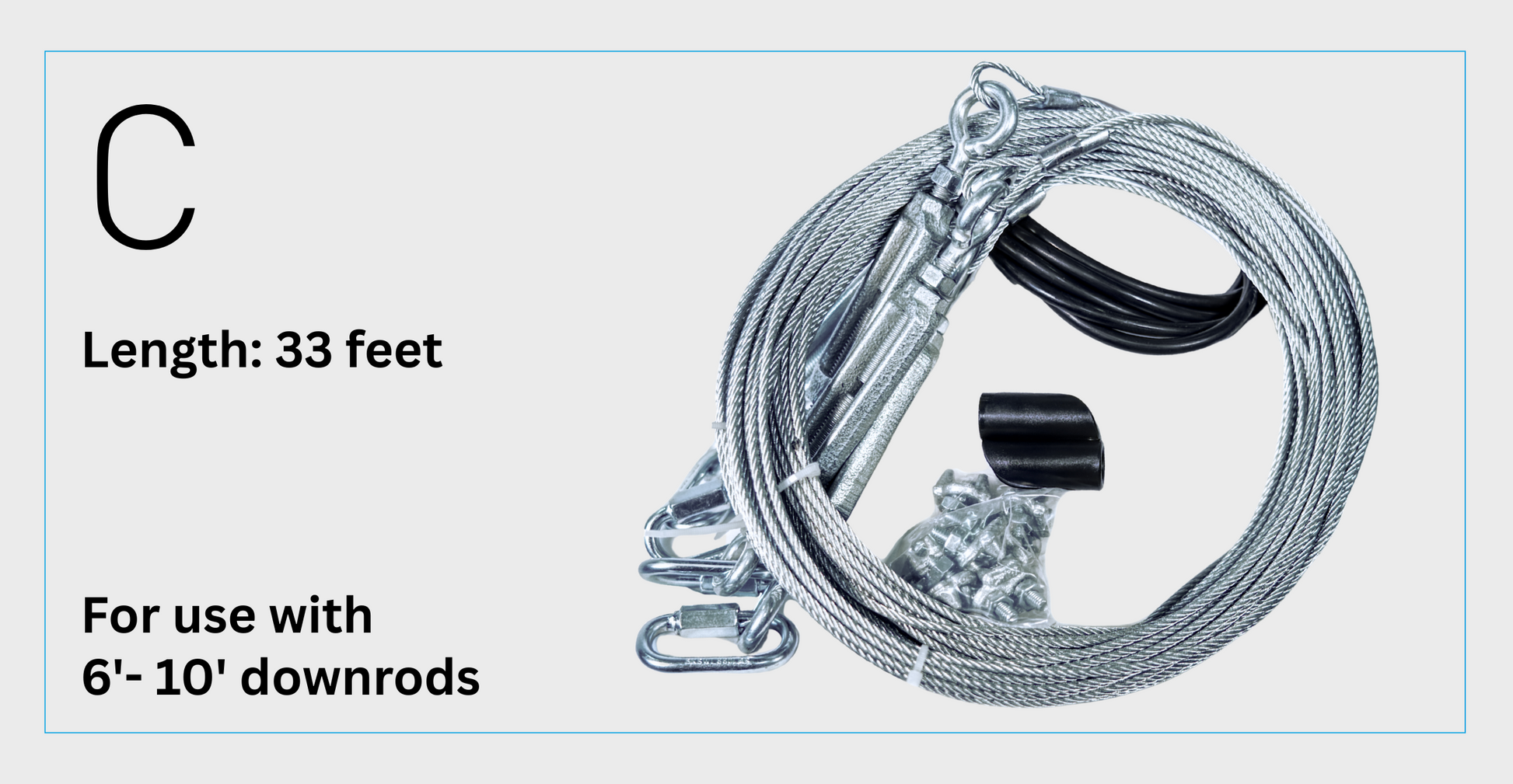

- 6'-10' = 33' guy wire kit (C)
-
3. Select your kit.
Choose the kit that matches your downrod length to ensure proper stability and safety.
Frequently Asked Questions

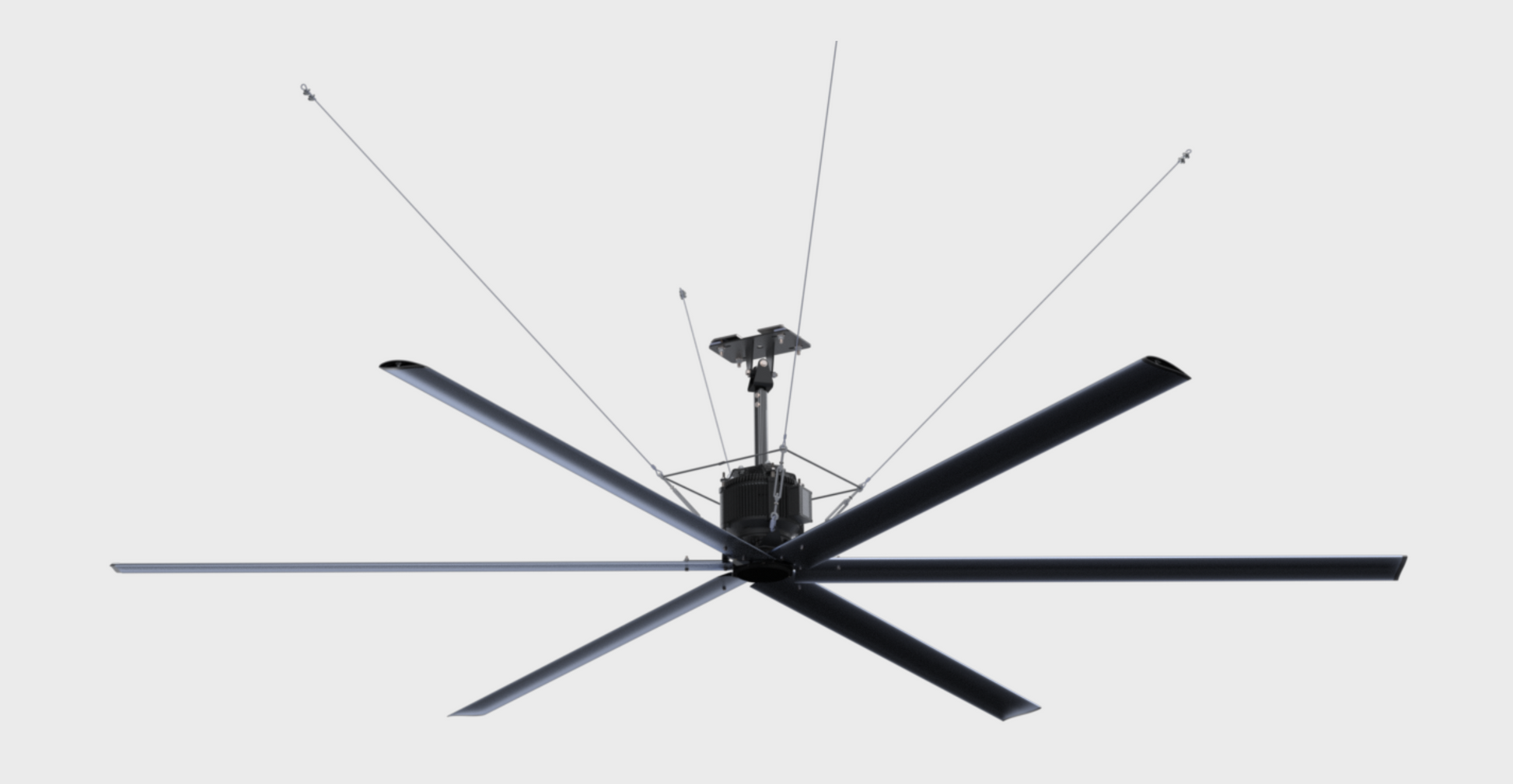

When do I need a guy wire kit for my fan?
- Guy wires are required on every universal mount.
- Guy wires are optional on the Rapid Mount Industrial, but can be used for additional stability if desired or necessary.
- Guy wires cannot be used on a Rapid Mount Commercial (another reason why we wouldn't want customers to just be able to purchase them without providing us relevant info).
- Guy wires are not required for a Rigid Mount, but can be added for additional stability if desired or necessary.
How many guy wires are required?
Four guy wires are required at equal spacing or balanced stability.
Can I install guy wires myself or do I need a professional?
Yes, provided that all instructions in the installation manual are properly followed. It is a technical process and professional installation is recommended.
At what angle should guy wires be installed?
Guy wires should be installed at as close to a 45 degree angle as possible.
What happens if I don't/can't install at a 45° angle?
If you do not install at a 45° angle, there is the potential for the fan to be unstable and wobble if the guy wires are not at a proper angle. It is important to be as close to the 45 degree angle as possible.
How taut should the guy wires be?
Turnbuckles should only be hand-tightened.Do not use tools to tighten the turnbuckles. Only use tools to tighten the jam nuts.
How do I attach guy wires to the building?
MacroAir recommends eyebolts or eye lags (not supplied by MacroAir). Avoid any sharp edges that may contact the guy wire. DO NOT wrap guy wires around the building structure.
Do guy wires work with a sloped ceiling?
Yes.
Will guy wires still work if I purchase a longer droprod?
MacroAir offers different lengths of guy wires to accommodate longer drops. Speak to your Sales Representative prior to purchasing a longer droprod to ensure that you receive all the parts you need.
Do guy wires require any maintenance?
Checking a MacroAir fan’s guy wires for tension and inspecting for frayed sections could mitigate a problem before it occurs.
- The guy wires should be under enough tension to prevent any movement in the motor unit or the extension tube. If the motor unit can be moved by pushing on it, the guy wires need to be tightened.
- Fan owners should confirm that the guy wires are not wrapped around any sharp edges.
- MacroAir recommends attaching guy wires to the building with eyebolts or eye lags. If they are not already installed with eye bolts or lags, we urge fan owners to install these to help keep the guy wires from fraying.
- If guy wires are installed with turnbuckles, jam nuts should periodically be checked to ensure tightness. If they are loose, the guy wire cables may need to be re-tensioned.
